Upload and manage digital objects

Digital objects objects are computer files that can be uploaded into and displayed by AtoM; they can include scanned images, digital photographs, sound and moving image files, and other scanned or born-digital items. AtoM allows the user to link a single digital object to an archival description or an an authority record, or import multiple digital objects to new lower levels of description. In AtoM, there is a 1:1 relationship between a digital object and an information object - meaning every digital object must be associated with an archival description, typically at the file or item level (see level of description), or an authority record.

For every object uploaded, AtoM creates two derivative objects from the master: a thumbnail image and a reference display copy of the object. The master digital object is the unaltered version of a digital object that has been uploaded to AtoM. Note that only authenticated (i.e. logged-in) users may view master digital objects by default (though this can be changed by editing the permissions of unauthenticated users - for more information, see: Edit permissions).

Important

By default, all users can view the master digital object of an uploaded PDF, regardless of the “View master” settings in the Archival description permissions tab. This is because the reference display copy is not large enough to be useful without access to the full PDF, while the reference copy might be perfectly serviceable for an image (and restricting access to the master may be part of the required copyright conditions). Note that users could still restrict public access to uploaded PDFs using the PREMIS actionable rights module - for more information, see: Rights.

A image of the carousel in AtoM

At higher levels of description, the view page of a parent record will include thumbnails of all digital objects registered at lower levels. The thumbnails are displayed using a carousel viewer so you can easily scroll through the set using your mouse or keyboard’s arrow keys. Clicking on a thumbnail will redirect you to the view page for the description associated with that digital object. If more than 10 digital objects appear at lower levels, AtoM will display the first 10 in the carousel and provide a link to a digital object browse page to explore the rest if desired. For more information, see the Carousel entry in Navigation in AtoM.

Tip

The digital object carousel can also be disabled by an administrator via Admin > Settings > Default page elements. For more information, see: Default page elements.

See below for more information on:

Upload multiple digital objects to archival descriptions

Important

The following instructions refer to the Flash-based multi-uploader that was included in AtoM 2.6.2 and earlier releases. Since then, Flash has been deprecated and support has been removed from most browsers. The 2.6.3 release includes a new multiuploader - for instructions on its use, please refer to the 2.7 documentation page.

In AtoM, there is a 1:1 relationship between archival descriptions and digital objects - that is, only one digital object may be associated with an archival description, and all digital objects require an associated description. However, to enable a rapid workflow where users can upload multiple digital objects without first having to create associated descriptions, AtoM includes an option to upload multiple digital objects at once, as children of a selected archival description. Users can choose what level of description is used when the placeholder descriptions are created; a title can also be added to each uploaded digital object, which will then be used as the title for the related description.

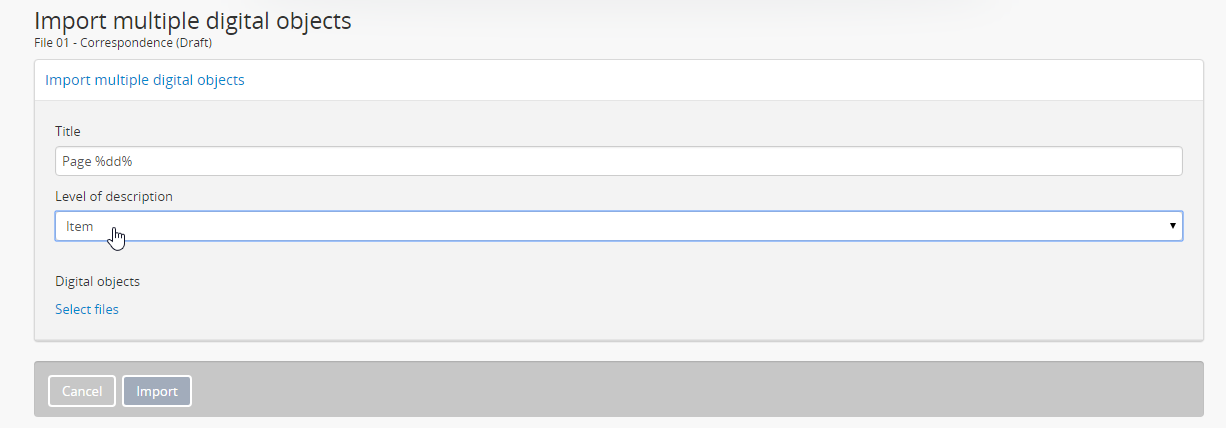

A image of the upload multiple images edit page

Note

The following workflow has been known to fail when using Firefox as your webbrowser. For this particular workflow, we recommend using another browser, such as Chrome.

To upload multiple digital objects in AtoM:

  1. Navigate to the view page of an existing archival description in AtoM. You can do this by browsing or by searching for a specific archival description - see Access content for more information on navigation in AtoM.
  2. Click on the “More” button in the button block; from the menu that appears, select “Import digital objects”.
An image of the options in the More button located in the button block
  1. Select a title for the objects - this will be used as the title for the associated archival description that will be created for each object uploaded. Each object will also have its own title field once selected, but if you do not wish to individually name each object, an automated title can be added to all objects using the title field at the top of the upload page. Currently the default is image 01, image 02, etc. (which will appear as a placeholder (i.e. image %dd%) in the “Title field”).
Choosing the default title added to child descriptions
  1. Choose a level of description. Unlike the Link a single digital object to an archival description option, which attaches the digital object directly to the archival description at that level, the “Import multiple objects” option requires the user to designate a level of description (e.g.: Fonds, Subfonds, Collection, Series, Subseries, File, Item, Record group, Part, etc). This level of description will be used for the new children that are generated as part of the upload.
Selecting a level of description for the child descriptions

Tip

For users wishing to include multiple individual images as “views” of a single item, AtoM now includes “Part” as a level of description included at installation.

  1. Click the blue “Select files” link and select multiple files to upload.
  2. Once selected, the page will show previews of all the objects. If you like, you can edit the title for each object under to the preview. Remember, the title you enter here will be the title used for the associated archival description that will be created for each digital object uploaded.
Customizing individual description titles for each object uploaded
  1. You can quit the upload process at any time by clicking the “Cancel” button in the button block; any digital objects already uploaded will not be saved. Note that simply navigating away from the page by any other means, without first clicking “Import” will also result in no new digital objects being uploaded.
  2. Click the “Import” button in the button block when you are satisfied with your changes. When you return to the view page, you will see that the objects have all been attached to the archival description as child records of that description. If the digital object Carousel is enabled (see Default page elements for instructions on enabling or disabling the carousel), you will also see the thumbnails of your uploaded digital objects in the carousel.
An image of a description after uploading multiple digital objects

Back to top

Upload PDF

A user can link a single PDF and import multiple PDFs into AtoM. A full-text search of the content of the PDF is available through the main search box. PDFs that have a text layer will work, including all OCR PDFs and born-digital PDFs that include a text layer (e.g., exported Word documents) will work. Search results will refer users to the PDF that contains the search term(s), but will not reveal the location of the term(s) within the PDF.

Currently, AtoM 2.x truncates PDF text after the first 65,535 bytes.

As mentioned above, it is possible to upload multi-page TIFFs or PDF files to be displayed with a page viewer and to upload each page as a child object of the parent. To enable this feature, see settings.

Otherwise, the process for uploading PDFs is the same as described above.

Back to top

Edit digital objects

Any digital object that has been uploaded and linked to an archival description or authority record can be edited at any time by an authenticated (i.e. logged-in) user.

To edit a digital object:

  1. Navigate to the view page of an existing archival description or authority record that has an associated digital object.
  2. Click on the “More” button in the button block; from the menu that appears, select “Edit digital object”.
  3. You will be redirected to the digital object’s edit page. On this page, all representations (i.e. master representation, reference representation and thumbnail representation) of the digital object will be listed, along with information on their Filename, Filesize and Media Type.
  4. The Media type is used by the Media type facet in the search/browse pages - in some cases, AtoM might not properly detect the media type, and you can adjust it here for better results. Values include: Audio, Image, Video, Text, and Other. For more information on filter facets in AtoM, see: Facet filters.
  5. You can add alternative text to display if the image cannot be displayed in your browser.
  6. You can also add latitude and longitude values to the Master digital object’s metadata for basic geolocation support. This can configured to display a dynamic Google map in AtoM - for more information, see below:

Edit reference and thumbnail representations

  1. If you wish to use a different image as the thumbnail or reference version this is also performed from the Edit digital object screen. First click delete in Reference representation or Thumbnail area.
Deleting a thumbnail or reference image
  1. AtoM will ask the user to confirm that they would like to delete the thumbnail/reference image. After confirming, the Edit digital object screen will allow the user to upload a new reference representation by clicking Browse and selecting a file from their computer, or auto-generate a new representation from the master image.
Upload or create a new thumbnail or reference image.

Save changes

  1. You can quit the edit process at any time by clicking the “Cancel” button in the button block; any edits made to digital objects will not be saved. Note that simply navigating away from the page by any other means, without first clicking “Save” will also result in no new digital objects being uploaded.
  2. Once all your changes have been made, click the “Save” button in the button block. You will be redirected back to the archival description’s view page.

All changes made can be edited once again, at any time, by following the steps outlined above.

Back to top

Add dynamic maps to your digital object metadata

To support basic geolocation, AtoM has the ability to associate latitude and longitude coordinates with a digital object. If desired, you can also display a dynamic Google map in the digital object metadata area showing the location of the coordinates. To do so, an administrator will first need to configure certain settings so the map can be visible.

The map displayed in the digital object metadata area

Enabling the display of digital object maps

Two separate settings must be changed to enable the display of the digital object maps in AtoM. First, in Admin > Settings > Global, an API key must be added to the Google Maps Javascript API key setting.

You can request a Google Maps API key free of charge - all you need is a Google account. For more information, see:

Additionally, in Admin > Settings > Default page elements, the “Digital obect map” setting checkbox must be checked. Remember to save your changes in the Settings area!

The Digital object map checkbox in Default page elements

For more information, see:

Adding latitude and longitude values to a digital object

Once the above settings are configured, then any time a digital object has latitude and longitude values added to it, it will display a dynamic, zoomable map in the Digital object metadata area. To add your latitude and longitude values to an existing digital object (Examples show this process for archival description - the instructions are the same for authority record):

  1. Navigate to the archival description or authority record linked to the digital object you want to edit. You can do this by searching or browsing - for more information on navigation in AtoM, see: Access content.
The view page of an archival description with a digital object
  1. When you are on the view page of the related description, scroll down the button block at the bottom of the page, and in the “More” menu, select “Edit digital object”
The Edit digital object option in the More menu at the bottom of the page
  1. AtoM will redirect you to the edit page for the digital object. In the information area for the master digital object, add your latitude and longitude values to the fields provided.
Adding latitute and longitude values to a digital object

Important

For all latitude and longitude fields in AtoM, you need to use the Signed degrees format (e.g. DDD.dddd) for the data to work! Degree and cardinal based formats (e.g. DDD MM SS + compass direction) will not work and the map will not be generated properly.

When only one field is provided, latitude values should be entered first, followed by a comma before the longitude values.

Here is an example of the latitude and longitude for Vancouver, BC, Canada:

Correct format: (signed degrees)

  • 49.246292, -123.116226

Will not work in AtoM: (DMS cardinal)

  • 49° 14’ 46.6512” N, 123° 6’ 58.4136” W
  1. When you save the record, AtoM will return you to the archival description’s view page. In the Digital object metadata area, you should now see a Google map showing your coordinates with a pin. You can zoom, pan, change the map type, and clik to view a full Google map in a new tab.
The map displayed in the digital object metadata area

Tip

Not sure how to find out the coordinates of a location? You can use Google maps!

Find your location on a map - zoom in to make it as precise as possible. If you right-click and select the “What’s here?” option that will appear in the context menu that appears, Google Maps will display the latitude and longitude values, along with any addtional information it has:

Finding lat and long values with Google Maps

You can then use this information in AtoM following the steps described above!

Back to top

Edit the filename of a digital object linked to an archival description

For locally uploaded digital objects, you can edit the file name of the digital object after it has already been uploaded, using the “Rename” module. Once edited, AtoM will automatically update all related file paths to ensure that the link between the digital object and the associated archival description is maintained.

Note: this is not available for digital objects linked to authority records.

Important

This feature is best used for locally uploaded digital objects, not digital objects linked via URL to an external location, such as the web.

Technically the feature will work with external links, but all you are renaming in AtoM is the filename stored in the database associated with the master digital object, and the filenames of any locally generated derivatives such as the reference display copy and the thumbnail. When linking a digital object in AtoM via URL, the master is not stored in AtoM, but local derivatives are created for use in search/browse results and the view page of the linked description. For more on linking digital objects in AtoM, see above: Link a single digital object to an archival description. If you do edit the filename of an external linked digital object, AtoM will store the filename locally, and use it to update the filenames of the derivatives - but the external object will not be affected, and the link displayed in the digital object metadata area will be unchanged.

The Rename module used to edit the linked digital object filename can also be used to edit the title of the associated archival description, and its slug - detailed instructions on how to use it for these other purposes are included on the Archival Descriptions documentation page - see: Rename the title or slug of an archival description.

To change the filename of a linked digital object:

  1. Navigate to the view page of an existing archival description with a linked digital object in AtoM. You can do this by browsing or by searching for a specific archival description - see Access content for more information on navigation in AtoM.
  2. Scroll down to the button block at the bottom of the page, and click on the “More” button - a menu will open with further options. Click on “Rename” to open the Rename module.
An image of the More button menu opened on an archival description
  1. AtoM will redirect you to the Rename module page. You will see 3 fields - one for the title of the description, one for the slug; the third field is for the filename of the digital object linked to the description.
An image of the Rename module's available fields

See also

For more information on editing the slug and/or title of a description with the rename module, see: Rename the title or slug of an archival description.

  1. To the right of the edit fields, there is a checkbox corresponding to each field. By default, the title and slug checkboxes will be checked, and the filename field will be unchecked. The checkbox associated with a field must be checked to enable editing. You can uncheck these fields at any time to disable them - doing so will undo any changes made and prevent the field from updating when the “Update” button is clicked. To edit the filename of the linked digital object, check the “Update filename” box. You also might wish to uncheck the Title and Slug boxes, to prevent any accidental edits.
  2. Place your cursor in the filename field and make changes as necessary. For reference, the original value before your changes is displayed below the field.
An image of the filename being edited in the Rename module

Important

AtoM will automatically sanitize a filename you submit, including:

  • Replacing spaces with hyphens
  • Stripping uppercase characters to lower
  • Removing special characters (e.g. ! @ # $ % ^ & etc)
  • Removing stopwords (e.g. a, an, the, etc)

This is similar to how a slug is sanitized - for more information, see: Notes on slugs in AtoM.

However, unlike when editing a slug (see Rename the title or slug of an archival description), AtoM will not give you any warning or notification when making these changes after you submit the new filename. You will have to look at the digital object metadata area to review the sanitized filename, and repeat the above steps if needed.

We recommend using lowercase alphanumeric characters with no spaces or stopwords when choosing your new filename.

  1. If you do not wish to save your changes, you can click the “Cancel” button in the button block at the bottom of the Rename module page. Note that navigating away from the Rename page will also result in no changes being saved.
  2. When you are finished making your edits, save your changes by clicking the “Update” button located in the button block at the bottom of the Rename module page. AtoM will redirect you to the view page for the related archival description. A notification banner at the top of the page will let you know that the description has been updated.
An image of the notification banner after a successful rename
  1. You can see the updated filename in the Digital object metadata area at the bottom of the record. If you are unhappy with the results, you can repeat steps 1-7 as necessary.
An image of the digital object metadata area on an archival description

Back to top

Delete digital objects

To delete a digital object that has been uploaded and linked to an archival description or authority record:

  1. Navigate to the view page of an existing archival description or authority record that has an existing digital object.
  2. Click on the “More” button in the button block; from the menu that appears, select “Edit digital object”. You will be redirected to the digital object’s edit page.
  3. Scroll to the bottom of the page and click “Delete”. You will be prompted to confirm that you wish to “Delete” the digital object; click “Delete” once again. You will be redirected to the archival description’s view page.

Back to top

Adding a watermark to reference images

A system administator can place a watermark file in AtoM’s root directory, so a digital watermark is overlayed over all reference display copy images generated when a digital object is uploaded.

For more information, see the Administrator’s manual:

Back to top

Digital object storage

In AtoM, administrators can track digital object storage per repository. Storage limits may be placed on individual repositories by in-house server capacity or on hosted server agreements.

If you are utilizing a multi-institutional / portal instance of AtoM, you will need to check with the site administrator to learn the digital object storage limitations.

For more information, see Managing digital object storage.

Files formats

A number of file formats are supported as digital objects in AtoM. Files in other formats can still be uploaded to AtoM; they just cannot be directly accessed or streamed within AtoM itself. In these cases the user must download the file from AtoM to his or her desktop and (assuming the user has the requisite software) access the content there.

The table below shows image, audio and video formats which can be viewed in AtoM:

Image Audio Video
PDF 8SVX AVS
BMP AC-3 BFI
GIF Apple Lossless CamStudio CSCD
PNG ATRAC3 Cinepak
JPEG Cook Codec Creative YUV (CYUV)
V.Flash PTX EA ADPCM DNxHD
SGI FLAC Flash Screen Video
Sun Rasterfile Intel Music Coder FFV1
FLIC Monkey’s Audio H.261
TIFF MP2 H.263
PNM MP3 H.264/MPEG-4 AVC
  Nellymoser Asao Codec in Flash Huffyuv
  QDM2 id Software RoQ Video
  RealAudio 1.0 Intel Indeo 2
  RealAudio 2.0 Intel Indeo 3
  Shorten LOCO
  Truespeech Mimic[3]
  TTA MJPEG
  TXD MPEG-4 Part 2
  Vorbis Apple Computer QuickDraw
  WavPack Quicktime Graphisc SMC
  Windows Media Audio 1 RealVideo RV10
  Windows Media Audio 2 RL2
    Smacker video
    Snow
    Sorenson SVQ1
    Sorenson SVQ3
    Theora
    Asus V1
    Asus V2
    VMware VMnc
    On2 VP3
    On2 VP5
    On2 VP6
    Westwood Studios VQA
    Microsoft WMV v 7, 8 and 9
    Wing Commander/Xan Video

Note

AtoM uses FFmpeg to handle audio-visual files. The table above shows the file formats supported by FFmpeg.
