AtoM Javascript Challenge¶

AtoM’s JS Challenge configuration¶

All settings for the JS challenge are configured in config/app.yml file:

user_challenge:
 activated: true
 test_headless: true
 cookiename_visited: atom_visited
 cookiename_headless: atom_headless
 cookiename_js: atom_js
 salt: 'REPLACE_WITH_SECRET'
 delay_seconds: 5
 cookie_days: 90
 cidr_exceptions:
   - '192.168.1.0/24'
   - '10.0.0.0/8'
 asn_user_agent_exceptions:
   examplebot:
     asn: 12345
     user_agent: ".*ExampleBot.*"
 network_user_agent_exceptions:
   monitoring_tool:
     user_agent: ".*prometheus.*"
     src_net: "159.89.122.75/32"
 country_exceptions:
   canada:
     country: CA
 asn_exceptions:
   - 15169
   - 12345

The specific directives defined in the defaults above are as follows:

• activated: This setting activates the js challenge feature. Valid values are “true” and “false”. If “false” the js challenge will not be used.
• test_headless: This setting activates the test to see if the user’s browser reports if it is headless. Valid values are “true” and “false”. If the test determines the user’s browser is headless, the ‘visited’ cookie will not be set and the bot will be stuck in a js challenge loop.
• cookiename_visited, cookiename_headless, cookiename_js: These three settings allow these cookie names to be overridden. Shown above are the default values.
• salt: This is used to ensure that the cookie values are random and specific to your AtoM installation. If this setting is not customized with a random value, then the cookie contents could be guessed and the JS challenge bypassed.

• delay_seconds: This configures the number of seconds the user will wait at the challenge page. Default is 5 seconds.
• cookie_days: This configures the number of days that the visited cookie will live. Default is 90 days. After 90 days the challenge will need to be completed again.
• cidr_exceptions: Lists exceptions by cidr range. If the request IP falls into one of these ranges the js challenge will not be required of the requester.
• asn_user_agent_exceptions: Lists exceptions by asn/user agent pairs. If the request matches both criteria then the js challenge will not be required of the requester. User agent exception supports RegEx.
• network_user_agent_exceptions: Lists exceptions by network/user agent pairs. If the request matches both criteria then the js challenge will not be required of the requester. Network is specified as a cidr notation range. User agent exception supports RegEx.
• country_exceptions: Lists exceptions by GeoIp country code. If the request country matches an exception then the js challenge will not be required of the requester.
• asn_exceptions: Lists exceptions by asn. If the request asn matches an exception then the js challenge will not be required of the requester.

geoip:
  asn_db_path: \%SF_ROOT_DIR\%/geoip/GeoLite2-ASN.mmdb
  city_db_path: \%SF_ROOT_DIR\%/geoip/GeoLite2-City.mmdb

Cookies and the development environment¶

When testing with the AtoM Docker environment you will need to refer to the test AtoM instance on localhost instead of 127.0.0.1 so that the domain path that the cookie is scoped to behaves properly.

When using 127.0.0.1, browsers treat it as a literal IP address rather than a domain name. This means that even if you try to set a domain attribute, the cookie may not be shared across what you might consider subdomains. In contrast, localhost is treated specially by many browsers, and cookies set on localhost tend to work as expected.

For consistent cookie sharing across subdomains in your test environment, it’s best to use a custom domain name that resolves to 127.0.0.1.

Notes about Salt and Cookies¶

There are a few things to keep in mind regarding the salt and cookies:

1. Salt must be a unique random value. The ‘salt’ value contained in the app.yml file is used to ensure that the hash that is contained in each of the cookies is unique to your AtoM site.

   This value must be updated to a unique random value when activating the JS challenge.

   If this setting is not customized with a random value when the js challenge feature is activated, then the cookie contents could be guessed and the JS challenge bypassed.

2. If the salt value is changed after the js challenge feature has been activated, all currently issued cookies will be invalidated and all users will have the js challenge re-applied the next time they visit the site.

3. The salt is used on the server side to create a unique checksum with the originating IP address value. This value serves as unique token content that MUST be included in the cookies when they are created in the end user’s browser. The js running in the browser must receive this unique token from the AtoM server - the browser does not know the salt value and so cannot guess the checksum helping to ensure that the cookies cannot be faked by the requester.

4. If a user clears their browser cache and deletes cookies set in the browser this will delete the ‘atom-visited’ cookie as well. Doing so will cause the JS challenge to be applied again when the user next visits the AtoM site.

How Javascript Challenge Works¶

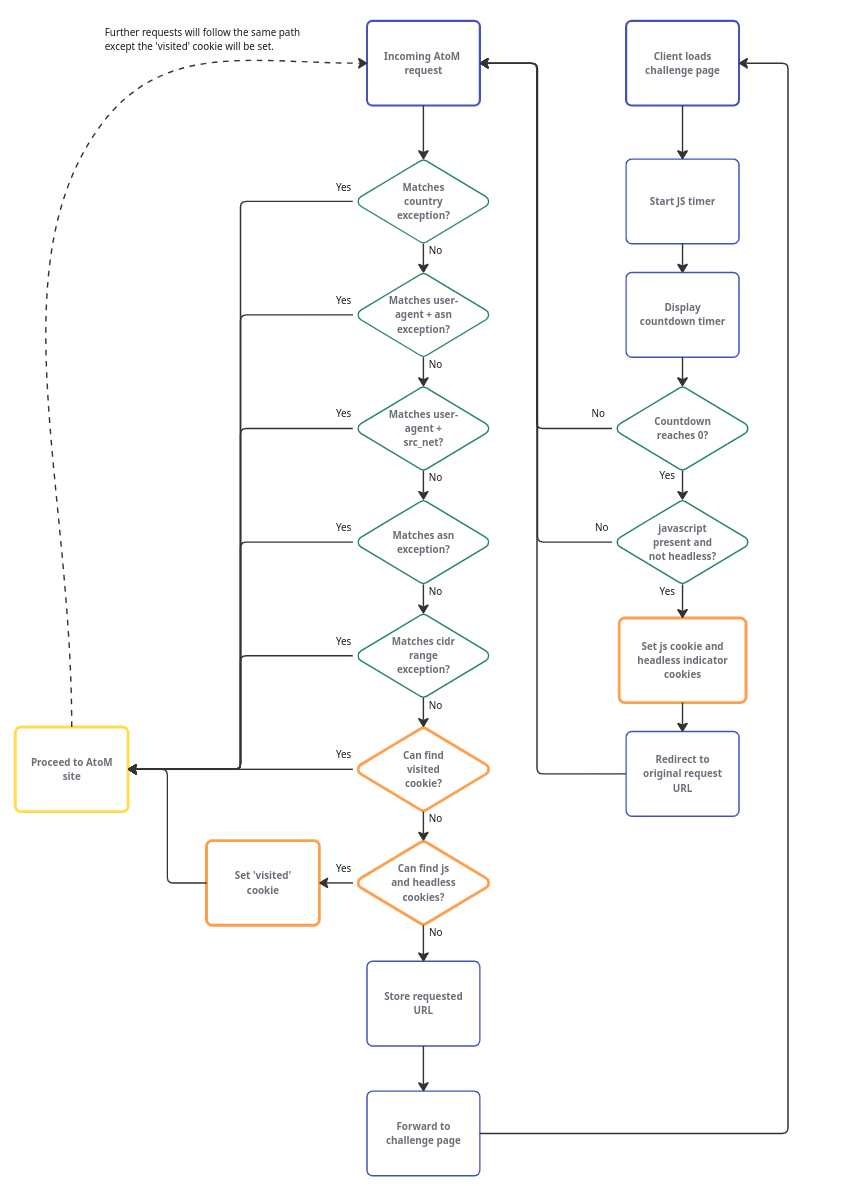

The above diagram describes how the JS challenge logic flow is applied. New requests start at “Incoming AtoM request” and proceed downwards. First, the request is compared to exception filters - if any filters match, the user will bypass the challenge and be forwarded straight to the application.

Second, if the cookies are not present, then the user will be re-directed to the admin/challenge action - this is a page that will display the “Validating you’re not a robot” text and run the JS script in the browser. If this is successful two cookies will be set: one indicating JS is activated, and one indicating the browser’s ‘headless’ state.

Thirdly, the user will be redirected back to the AtoM page they originally requested. If the cookies are present then the ‘atom-visited’ cookie will be set and the user will be be allowed to visit the page. If these cookies were not properly set, then a redirect back to the challenge will be sent.

The end result is that legitimate browsers will be able to easily set these cookies and pass this test. If these cookies are not set because it is not actually a browser requesting these AtoM pages but a script or a tool like Selenium, then these users will be caught in a redirect loop and will not be able to access the AtoM site.
