CSV import

Most often understood as an acronym for “comma-separated values” (though sometimes called “character-separated values” because the separator character does not have to be a comma), CSV is a file format that stores tabular data in plain-text form. Information with common properties that can be expressed as a sequence of fields sharing a common header can be stored in plain-text using the CSV format, making it application agnostic and highly transportable.

A CSV file consists of a number of records (rows), that have identical fields, separated by commas (or in some cases, another separator). Often a header column (i.e. the cell values in first or top row of a CSV file) is included, naming each column and indicating what kind of data the column contains. Data is then entered using a separator or delimitor (such as a comma) to indicate a separation of fields (or cells), and a line break or carriage return to indicate rows (i.e. different records). Most spreadsheet applications (such as LibreOffice Calc or MS Excel) can open CSV files and express them as a spreadsheet. See Wikipedia for more information on CSV.

In AtoM, the CSV import function allows user to import data from a spreadsheet, or another database (so long as the export from the database is made to conform with the AtoM CSV template format). Artefactual has created a number of CSV templates that can be used to import various different entity types. AtoM expects the column headers used in the templates and imports that do not conform to this pattern will fail or cause unexpected results.

CSV imports peformed via the user interface in AtoM are are executed as jobs and performed asynchronously in the background to avoid timeouts in the web browser. Jobs in AtoM are handled by Gearman, and the status of AtoM jobs can be seen in the user interface via the Manage > Jobs page. For more information, see: Manage jobs and Asynchronous jobs and worker management.

To import CSV files, a user must be logged in as an administrator. For more information on user groups and permissions, see:

In addition to importing new records, AtoM can also attempt to identify matches on existing records and either update them in place, or delete the matches before importing the new records as replacements. This functionality will be described in greater detail below, along with other import options.

Jump to:

See also

All AtoM CSV templates can be found on the AtoM wiki:

AtoM also includes a method of validating a CSV prior to import, which can help avoid many common issues. For more information, see:

CSV imports can also be completed by a system administrator via the command-line interface. For more information, see The Administrator’s Manual:

For other import options, see:

Before you import

Before you start importing records, there are a number of things you’ll need to do to prepare. You’ll likely want to determine import complexity to see how much technical resources need to be allocated and you’ll want to make modifications to your import data to ensure that it imports properly. Below are some guidelines to help you prepare your data for import into AtoM via CSV.

Important

We strongly recommend that imports never be carried out in your production environment, if possible. Instead, consider deploying a development/test version of your AtoM instance, performing the import(s) there, reviewing the data for any problems and making any required edits via the user interface, and then migrating this data to your production server. For more information on how to migrate data, see:

Jump to

CSV Column mapping

AtoM was originally built to encourage broad adoption and use of the ICA’s international standards, and expanded to support other recognized standards. Consequently, all of the description templates in AtoM correspond to a recognized content or metadata exchange standard, and many of the fields in our underlying database model are also inspired by ICA standards. For your data to import successfully into AtoM, you will first need to map it to one of our existing CSV templates, which are derived from the various standards-based templates available in AtoM for description.

Mapping your data to the supplied CSV templates below implies a familiarity with the standards used in AtoM, so you can make appropriate decisions on which fields in your data map to which fields in AtoM, and how to proceed if your data does not easily map 1:1 with the standard upon which our templates are based.

For further information and source links to the standards used in AtoM, see:

The cell values in the top row of a CSV data file conventionally name each column. The name indicates what kind of data the column contains. If the CSV data you wish to import doesn’t include a row like this, you should insert one. You should then make the names correspond to AtoM-friendly names using the top row of data in the example CSV file(s) appropriate to your import.

Available example files are:

  • ISAD archival description CSV template
  • RAD archival description CSV template
  • Authority record CSV template
  • Authority record relationships CSV template
  • Accessions CSV template
  • Deaccessions CSV template
  • Events CSV template
  • Repository CSV template
  • Physical storage locations CSV template

All CSV templates can be found on the AtoM wiki:

You can also find all example CSV import templates included in your AtoM installation, in: lib/task/import/example.

The order of the columns in the example CSV files is the same as the order in the AtoM interface, and should be maintained. Having the correct names in the cell values of the first row of your CSV data enables AtoM to import values in each column to the correct AtoM fields.

Tip

If you would like to better understand how AtoM’s import columns map to supported data entry fields in your chosen template, try importing one of CSV import templates found on the AtoM wiki. Each field in these templates is populated with example data that includes the name of the related standards-based field - for example, the example data in the ISAD(G) import template for the scopeAndContent field is “Example fonds Scope and content (ISAD 3.3.1)”. Comparing the example data in your import template with the resulting record in AtoM should help you better understand how the column names map to AtoM’s standard-based data entry fields.

Another good way to make sure your column mapping is correct while using your own metadata is to create a blank row after the top row and populate this with test values. You can then do an import, stop it after the first row (using CTRL+C if importing from the command-line), and make sure that all the values from the CSV row are present in AtoM. Including, in each field of a row, the letter corresponding to the corresponding spreadsheet column (including, for example, the text “(A)” for data in spreadsheet column A) makes it easy to quickly determine if a field is showing up on the AtoM side after import.

Verify character encoding and line endings

For your CSV files to import properly, you will need to ensure two things prior to importing: that the character encoding of your CSV file is set to UTF-8, and that the end-of-line characters used in your CSV conform to the Unix/Linux style of newline character.

Important

Your import will likely fail if you don’t ensure these two things are are correctly set prior to import! Please review the sub-sections below for further details.

Note that AtoM includes a command-line task that can validate an import CSV for common issues (including a check for UTF-8 encoding and line endings), producing a report that flags errors that will cause the import to fail, as well as providing warnings on elements that will not halt the import, but could lead to unexpected results if unintended. This task is also supported via the user interface, and can be run independently of import, as well as configured by an administrator to run automatically before any CSV import.

For more information including tips on how to troubleshoot encoding issues, see:

Character encoding (UTF-8)

For a CSV file to upload properly into AtoM (and display any special characters such as accents contained in the data), your CSV file must use a UTF-8 character encoding. If you have used a Windows or Mac spreadsheet application (such as Excel, for example), it’s possible that the default character encoding will not be UTF-8. For example, Excel uses machine-specific ANSI encoding as its defaults during install, so an EN-US installation might use Windows-1252 encoding by default, rather than something more universal such as UTF-8 (the default encoding in AtoM). This can cause problems on import into AtoM with special characters and diacritics. Make sure that if you are using Excel or another spreadsheet application, you are setting the character encoding to UTF-8. Many open source spreadsheet programs, such as LibreOffice Calc, use UTF-8 by default, and include an easy means for users to change the default encoding.

Tip

For Excel users, here is an quick guide on converting CSV files to UTF-8:

Line endings

“In computing, a newline, also known as a line ending, end of line (EOL), or line break, is a special character or sequence of characters signifying the end of a line of text. The actual codes representing a newline vary across operating systems, which can be a problem when exchanging text files between systems with different newline representations.” (Wikipedia entry on Newline )

Here are some of the differences:

  • Unix / Linux / FreeBSD / OS X use LF (line feed, \n, 0x0A)
  • Macs prior to OS X use CR (carriage return, \r, 0x0D)
  • Windows / DOS use CR+LF (carriage return followed by line feed, \r\n, 0x0D0A)

AtoM’s CSV import will expect Unix-style line breaks ( \n ). If you have been using a spreadsheet application (such as Excel) on a Mac or Windows, you may encounter import issues. There are many command-line utilities and free software options out there to convert newline characters. Please ensure that your spreadsheet is using the correct line endings prior to upload, otherwise the upload will fail.

We recommend the use of LibreOffice Calc as an open source spreadsheet application for preparing and managing CSV import metadata. By default, Calc will allow you to configure the character encoding used to display a file each time it is opened, and will use the correct line-ending characters by default when a CSV file is saved using UTF-8 encoding.

Data transformation

If you are working with a CSV export from another system (such a different database), you may need to do further pre-processing to prepare your CSV. If your previous system was designed for standards-compliance to a standard that AtoM supports (see: Descriptive standards), the mapping process might be simple - but if your system used custom data fields, mapping to one of the supported standards could be trickier.

You may, for example, want to combine multiple CSV column values, that don’t cleanly map conceptually to AtoM-compatible CSV columns, into single columns so they can be put into AtoM as notes. So ColumnA and ColumnB could be combined into a generalNote column. This requires you to transform the data before importing.

Depending on the size of your import data, this work can be done manually using a spreadsheet program - simply cut and paste your data into the corresponding cell in the provided import templates. However, for larger data sets, data transformation can be done with custom programming (for example, a Python script written by a developer), open source tools such as Open Refine or Pentaho Data Integration, or via a CSV transformation script.

We have included some guidelines for creating custom CSV transformation scripts on the AtoM wiki. See:

Note

Creating custom CSV scripts is an activity generally performed by a developer.

Testing and validating your import

AtoM includes a command-line task that can validate an import CSV for common issues, producing a report that flags errors that will cause the import to fail, as well as providing warnings on elements that will not halt the import, but could lead to unexpected results if unintended. This task is also supported via the user interface, and can be run independently of import, as well as configured by an administrator to run automatically before any CSV import. For more information, see:

Despite this, AtoM cannot validate the actual metadata included in each row - meaning the CSV can in some cases be considered valid and well-formed, yet still lead to undesirable results. For large imports in particular, it may be wise to perform a test import first into a separate test instance of your AtoM installation.

To do so, you may want to clone your AtoM site and test your import on the clone before importing to your production AtoM installation. This prevents you from having to delete any improperly imported data. During import testing if you want to delete all imported data you can use the command-line purge tool.

See: Purging all data in the Administrator’s manual for more information.

Alternatively, the Docker and Vagrant development environments offer an easy way to set up a test instance of AtoM on a personal computer, and could be used for local import testing prior to a final import into a production site. For more information, see:

Estimating import duration

Once you’ve mapped the columns names in your CSV export to the corresponding AtoM-compatible CSV column names and validated your initial metadata, you may also wish to perform a test import.

A test import gives you an idea how long the import will take to complete on your hardware. To estimate how long it will take to import 20,000 rows of CSV data, for example, you could time the import of the first 1000 records and multiply that by 20.

If your test import proves to be too slow on your hardware, or you don’t have hardware to spare, you can consider using cloud computing resources, such as Open Hosting, Amazon EC2, or Rackspace Cloud.

Back to top

Legacy ID mapping: dealing with hierarchical data in a CSV

Image of the the keymap table in AtoM's database

A representation of the keymap table in AtoM, from an Entity Relationship Diagram of AtoM’s MySQL database.

The legacyId column in imports is used to associate specific legacy data to AtoM data using ID columns. Why would you need to associate this data? Let’s say you’re importing a CSV file of description data you’ve exported from a non-AtoM system. If the imported descriptions are in any way hierarchical – with a fond containing items for example – a column in a child description will have to specify the legacy ID of its parent. The parent’s legacy ID can then be used to look up the AtoM ID of the parent that was imported earlier. With the AtoM ID discovered, the parent/child relationship can then be created. In addition to hierarchical description data, supplementary data such as events must specify a legacy parent ID when imported.

When CSV data is imported into AtoM, values in the legacyID column are stored in AtoM’s keymap table, in a column named source_id. A system administrator or developer can access this information, either via the command-line, or by using a graphical application such as phpMyAdmin to look up exising legacy ID values in the source_id column of the MySQL keymap table.

Note

Even if you are importing your descriptions as top-level records, we still recommend using a legacyId value during import. Simply leave both the parentID and qubitParentSlug columns blank for any row you want to import as a top-level description.

In cases where data is being imported from multiple sources, legacy IDs may conflict. Two datasets, for example, may have objects with an ID of 3. When importing, you can use the command-line option --source-name to only record or reference mappings for a specific data source. This will add a value in the source_name column of AtoM’s keymap table, which can then be used for mapping subsequent imports.

Tip

There is no way to set the --source-name during an import conducted via the user interface. Instead, the file name of the import is used as the source name value by default.

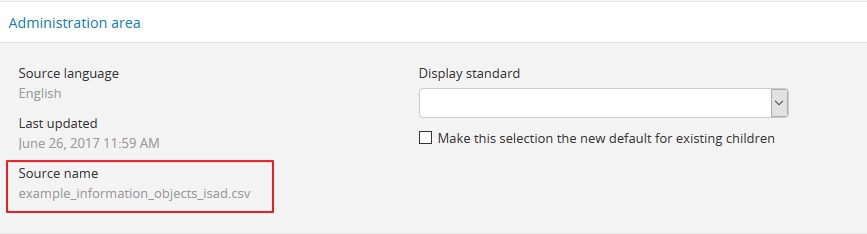

You can always check what source name was used for records created via an import by entering into edit mode and navigating to the Administration area of the edit page - the source name used will be diplayed there:

An image of the source name used during import, shown in the Administration area of the AtoM edit page.

The following example shows an import of information objects that records a specific source name when mapping legacy IDs to AtoM IDs:

php symfony csv:import information_objects_rad.csv --source-name=collection_name

In the above example, collection_name represents the value added by the user during import - now collection_name will be added to the source_name column of the keymap table for all records imported. Given the above example, the subsequent import of events using the following command would make sure that they get associated with information objects from the specific source identified as collection_name:

php symfony csv:event-import events.csv --source-name=collection_name

Tip

If you use the --source-name command-line option during your CSV import and you want to use spaces in the source name you add, you will need to enclose it in quotation marks. For example, both of the following are valid:

php symfony csv:import information_objects_rad.csv --source-name=collection_name

or:

php symfony csv:import information_objects_rad.csv --source-name="collection name"

The --source-name option can also be used to keep larger imports that have been broken into multiple CSV files related. Adding the --source-name option to each CSV import, with a common name added for each, will prevent AtoM from duplicating import data, such as terms and actors (authority records) during import.

For more information on command-line imports, see: Import and export from the command-line.

See also

Back to top

Prepare archival descriptions for CSV import

The AtoM CSV import allows you to map CSV columns with specific headers to AtoM data. Example RAD and ISAD CSV template files are available in AtoM source code (lib/task/import/example/rad/example_information_objects_rad.csv and lib/task/import/example/isad/example_information_objects_isad.csv) or you can download the files here:

The following section will introduce some of the relevant CSV columns so you can prepare your archival descriptions for import.

Jump to:

See also

Hierarchical relationships

Information objects often have parent-child relationships - for example, a series may be a child of the fonds to which it belongs; it has a parent fonds. If you want to import a fonds or collection into AtoM along with its lower levels of description (i.e. its children - series, files, items, etc.), you will need a way to specify which rows in your CSV file belong to which parent description.

There are two basic ways to specify which information object is the parent of an information object being imported in your CSV - either through the use of the legacyID and parentID columns (generally used for new descriptions being imported, or from descriptions being migrated from another access system), or by using the qubitParentSlug column to import new child descriptions to an existing description in AtoM.

Warning

Note that if you set both the parentId and qubitParentSlug in a single row, the import will default to using the qubitParentSlug. In general, only one type of parent specification should be used for each imported information object (i.e. each row in your CSV).

You can use a mix of legacyId/parentId and qubitParentSlug in the same CSV, just not in the same row. So, for example, if you wanted to import a series description as a child of a description already in AtoM, as well as several files as children of the series description, you could set a legacyID for the series, use the qubitParentSlug to point to the parent fonds or collection already in AtoM, and then use the parentID column for all your lower-level file descriptions. However, using both parentID and qubitParentSlug in the same row will cause a conflict, and AtoM will prefer the qubitParentSlug so the import does not fail.

Both methods of establishing hierarchical relationships are described below.

Note

If you want your records to import as top-level descriptions, simply include a legacyID value, and leave both the parentID and qubitParentSlug columns blank for that row.

LegacyID and parentID

One way to establish hierarchical relationships during a CSV import involves the use of the parentId column to specify a legacy ID (referencing the legacyId column of a previously imported information object). This way is most often used for migrations from other access systems. Using this method, parent descriptions (e.g. fonds, collections, etc) must appear first (i.e. above) in your CSV and must include a legacyID - while child records must appear after (i.e. below) their parent records in your CSV, and must include the legacyID of the parent record in the parentID column.

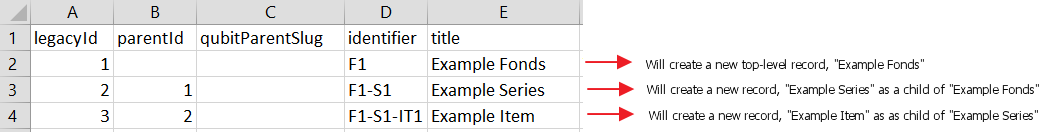

Here is an example of the first three columns of a CSV file (shown in a spreadsheet application), importing a Fonds > Series > Item hierarchy:

example CSV parentID rows

Important

When the CSV is imported, it progresses row by row - meaning, if your CSV is not properly ordered with parent records appearing before their children, your import will fail!

Records in a CSV are imported sequentially, row by row. As each row is imported, the legacyID value is added to AtoM’s keymap table in the database. When a parentID is encountered, AtoM will check the keymap table for the corresponding legacyID. If a parentID value doesn’t refer to the legacyID of a previously imported description, AtoM’s import logic will fall back to check for an existing description with that internal object ID.

If there is still no match, then a warning will be included in the console output (shown on the Job details page), and the record will be imported as a top-level description. Be sure to double-check the results post-import!

See also

qubitParentSlug

The other method of importing hierarchical data into AtoM enables you to specify an existing archival description that doesn’t have a legacyID (one, for example, that has been manually created using the AtoM web interface), and import descriptions as children of the target description(s).

To specify a parent that exists in AtoM, you must first take note of the parent information object’s slug. The “slug” is a textual identifier that is included in the URL used to view the parent description. If the URL, for example, is http://myarchive.com/AtoM/index.php/example-fonds then the slug will be example-fonds. This slug value would then be included in your import in the qubitParentSlug column in the rows of children of the parent description.

Alternately, if you are using the command-line to perform your import, you can use the --default-parent-slug option in the command-line to set a default slug value, that will be used when no qubitParentSlug or parentID values have been included for the row. For more information, see the details in the Administrator’s manual on command-line CSV export: Importing archival descriptions.

Here is an example of the first few columns of a CSV file (shown in a spreadsheet application), importing a new series to an existing fonds, and importing two new file-level descriptions to an existing series:

example CSV qubitParentSlug rows

If desired, you can mix the use of the qubitParentSlug column with the use of the parentID column in the same CSV - for example, you could attach a new series to an existing fonds by giving it a legacyID and the slug for the existing fonds in the qubitParentSlug column, and then including lower-level files attached to the new series by adding the legacyID of the new series to the parentID column of the new files.

Important

You should not add both a parentID and a qubitParentSlug to the same row - AtoM expects one or the other. When the import encounters both columns populated in a single row, AtoM will default to use the qubitParentSlug value. In general, each row must have only one or the other - either a parent slug, or a parent ID.

See also

Other data entry notes

  • language and languageOfDescription, like culture, expect two-letter ISO 639-1 language code values - for example, “en” for English; “fr” for French, “it” for Italian, etc. See Wikipedia for a full list of ISO 639-1 language codes. Unlike the culture column, however, these two fields will accept multiple values separated by a pipe character - for example, en|fr|it.
  • The script and scriptOfDescription columns expect four-letter ISO 15924 script code values - for example, “Latn” for Latin-based scripts, “Cyrl” for Cyrillic scripts, etc. See Unicode for a full list of ISO 15924 script codes.
  • Alternative identifiers and their display labels can be imported using the alternativeIdentifiers and alternativeIdentifierLabels columns. Use pipe (|) separators to add multiple values. There should be a 1:1 relationship between the number of identifier values in the alternativeIdentifiers column and corresponding labels in the alternativeIdentifierLabels column.
  • An accessionNumber column can be added to create a link between an existing accession record and an archival description being imported via CSV. See the section on Accession CSV import below for more information.

See also

Full list of AtoM supported languages and corresponding ISO 639-1 codes:

There are several CSV validation checks available that will review metadata values in the language, script, and culture columns of a CSV. For more information, see:

Importing translations

As of version 2.6, AtoM will allow you to import new descriptions in multiple languages at once, as a way of adding translations to your source content during an import.

At this time, not all CSV fields support translation imports. Only those fields found in AtoM’s information_object_i18n database table can be imported as translations. These include:

  • title
  • alternateTitle
  • radEdition
  • extentAndMedium
  • archivalHistory
  • acquisition
  • scopeAndContent
  • appraisal
  • accruals
  • arrangement
  • accessConditions
  • reproductionConditions
  • physicalCharacteristics
  • findingAids
  • locationOfOriginals
  • locationOfCopies
  • relatedUnitsOfDescription
  • rules
  • sources
  • revisionHistory
  • institutionIdentifier

The translation import works on the following logic: whenever AtoM encounters two consecutive CSV rows that have the same legacyId value, but different culture values, AtoM will import the second row as a translation of the first. AtoM expects two-letter ISO 639-1 culture codes to be used in the culture column - e.g. en for English, fr for French, etc. See the section above, Other data entry notes, for further information.

Preparing translations for import

To import new archival descriptions with translations:

  • Make sure that every row in your CSV has a legacyId and a culture value
  • Place translation rows directly below the source culture row
  • Translation rows must have the same legacyId value as their source culture rows
  • Translation rows must have a different culture value as their source culture rows
  • Make sure that all culture values use ISO 639-1 two-letter codes
  • In the translation rows, leave any columns that do not support translation blank

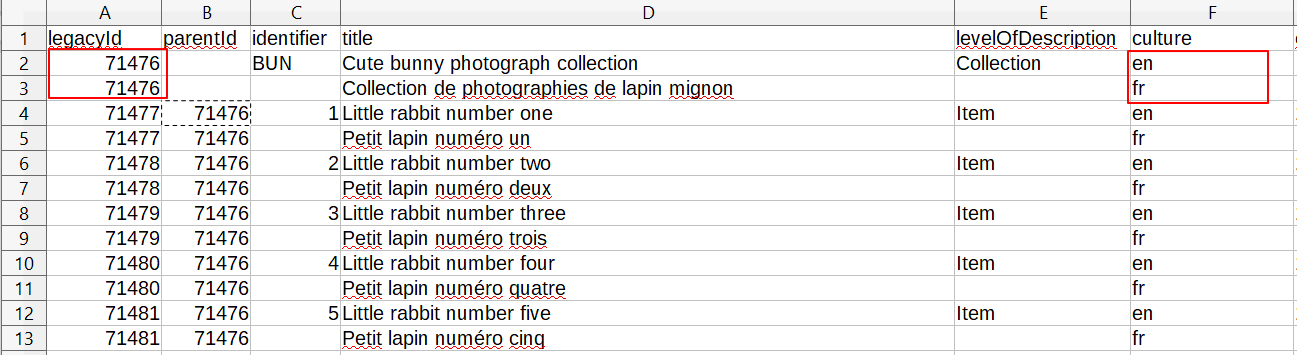

An example CSV:

An example CSV with translation rows included

Tip

Most fields that can’t currently be translated via CSV import can still be translated via AtoM’s user interface. For more information on translating content via the user interface, see:

Remember that linked entities (such as a creator name, a subject access point, or other terms that are maintained in taxonomies such as the Levels of description, etc) cannot be translated directly on the archival description edit page. Instead, navigate to the linked entity, flip the user interface into the desired translation culture, enter edit mode, add your translation, and save. When you return to your description and view it in the translation culture, the translated entity will now also display in the translation culture.

See also

Back to top

Import new archival descriptions via CSV

The following section will introduce how an archival description CSV of new records can be imported into AtoM via the user interface. AtoM also has the ability to use a CSV import to update existing descriptions - for more information on this, see below.

When importing new records, AtoM can also check for existing records that seem to match the descriptions you are about to import, and skip these records if desired - they will be reported in the Job details page of the related import job (see: Manage jobs for more information). This can be useful if you are uncertain if some of the records in your CSV have been previously imported - such as when passing records to a portal site or union catalogue. For more information on the criteria used during a CSV import to identify matches, see below, Matching criteria for archival descriptions.

Important

Before proceeding, make sure that you have reviewed the instructions above, to ensure that your CSV import will work. Here is a basic checklist of things to check for importing a CSV of archival descriptions via the user interface:

  • CSV file is saved with UTF-8 character encoding
  • CSV file uses Linux/Unix style end-of-line characters (/n)
  • All parent descriptions appear in rows above their children
  • All new parent records have a legacyID value, and all children include the parent’s legacyID value in their parentID column
  • No row uses both parentID and qubitParentSlug (only one should be used - if both are present AtoM will default to using the qubitParentSlug)
  • Any records to be imported as children of an existing record in AtoM use the proper qubitParentSlug of the existing parent record
  • If you have physical storage data in your CSV, you have ensured that all 3 physical storage columns are populated with data to avoid the accidental creation of duplicate storage locations (see above, Physical object-related import columns)
  • You have reviewed any other relevant data entry guidelines in the section above: Prepare archival descriptions for CSV import
  • You have reviewed how the authority record matching behavior works above, and know what to expect with your import.

AtoM also supports a CSV validation task that can be run from the command-line or the user interface, that can help identify common errors in CSVs prior to import. For more information, see:

If you have double-checked the above, you should be ready to import your descriptions.

To import a CSV file via the user interface:

  1. Click on the import Import menu, located in the AtoM header bar, and select “CSV”.
The import menu
  1. AtoM will redirect you to the CSV import page. To import new archival descriptions, Make sure that the “Type” drop-down menu is set to “Archival description” and the Update behaviors drop-down is set to “Ignore matches and create new records on import.”

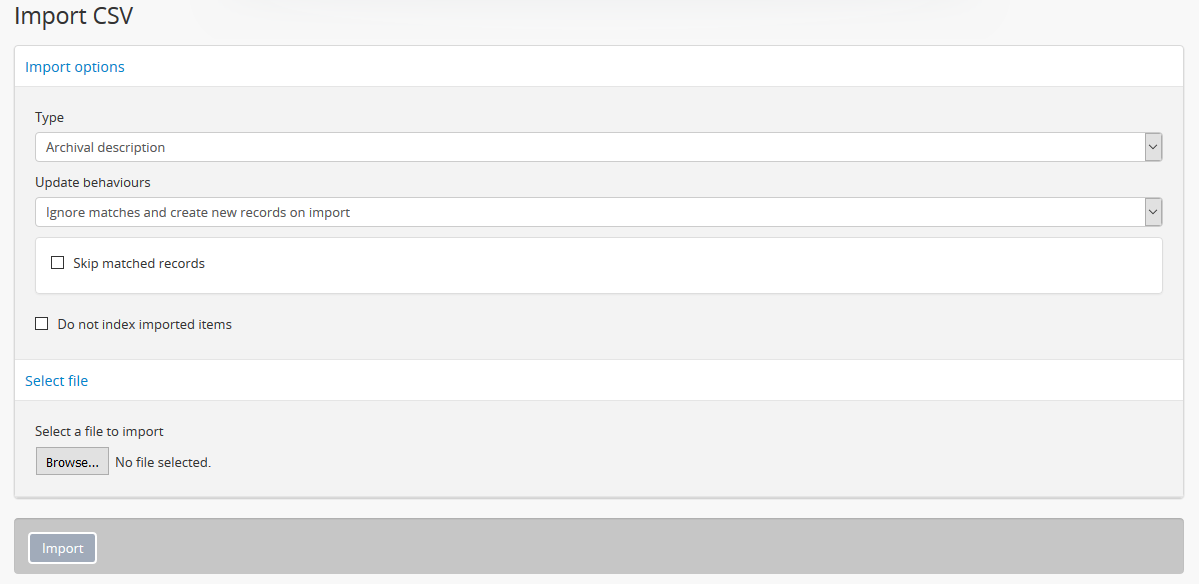

The CSV import page in AtoM
  1. AtoM can check for existing records that seem to match the descriptions you are about to import, and skip these records if desired - they will be reported in the Job details page of the related import job (see: Manage jobs for more information). To enable this option and skip matched records, click the checkbox labelled “Skip matched records.”
  2. If you do not want your files indexed during the import, you can click the checkbox labelled “Do not index imported items.” This will prevent the new records from automatically being added to AtoM’s search index.

Warning

If you do not index your records during import, they will not be discoverable via search or browse in the user interface! You will need to know the exact URL to reach them. To make them visible in the interface again, a system administrator will need to rebuild the search index. See: Populate search index.

  1. When you have configured your import options, click the “Browse” button to open a window on your local computer. Select the CSV file that you would like to import.
Clicking the "Browse" button in the CSV import page

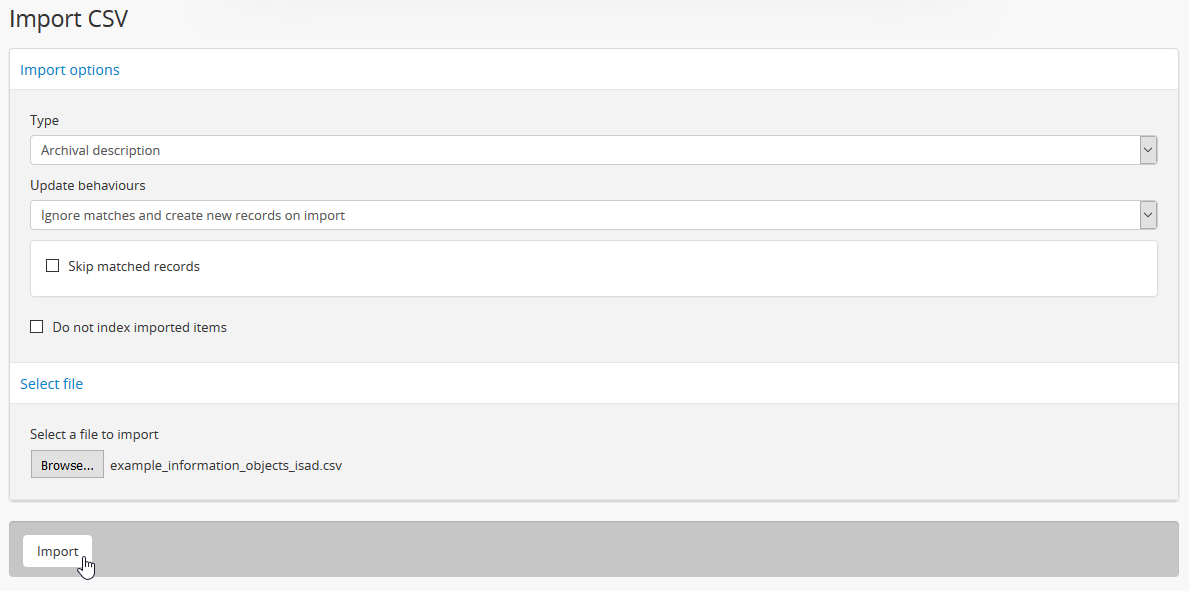

  1. When you have selected the file from your device, its name will appear next to the “Browse” button. Click the “Import” button located in the button block to begin your import.
Starting a CSV import in AtoM

Note

Depending on the size of your CSV import, this can take some time to complete. Be patient! Remember, you can always check on the status of an import by reviewing the Job details page of the related import job - see: Manage jobs for more information.

  1. After your import is complete, AtoM will indicate that the import has been initiated. A notification at the top of the page will also provide you with a link to the Job details page of the related import job. Alternatively, you can click the “Back” button in the button block at the bottom of the page to return to the CSV import page, or navigate elsewhere in the application.
When a CSV import has been initiated in AtoM

Tip

Want to find your recent imports? You can use the sort buttons located in the top-right hand side of the archival description browse page to change the results display to be ordered by “Date modified” in “Descending” direction if they are not already - that way, the most recently added or edited descriptions will appear at the top of the results. If you have come directly here after importing your descriptions, they should appear at the top of the results.

The browse page following a CSV import
  1. If any warnings or errors are encountered, AtoM will display them on Job details page of the related import job. Generally, errors will cause an import to fail, while warnings will be logged but will allow the import to proceed anyway - however, an administrator can configure the CSV import validation to run automatically on all imports, and when this setting is set to “strict” even warnings will prevent a CSV import from proceeding. For more information, see:

    Errors and warnings can occur for many reasons - please review the checklist above for suggestions on resolving the most common reasons that CSV imports fail. Note that validation can also be run independently of an import - doing so via the user interface will also generate a downloadable TXT file report with further details on errors and warnings encountered, that should help you troubleshoot any issues. See the CSV Validation documentation for further details.

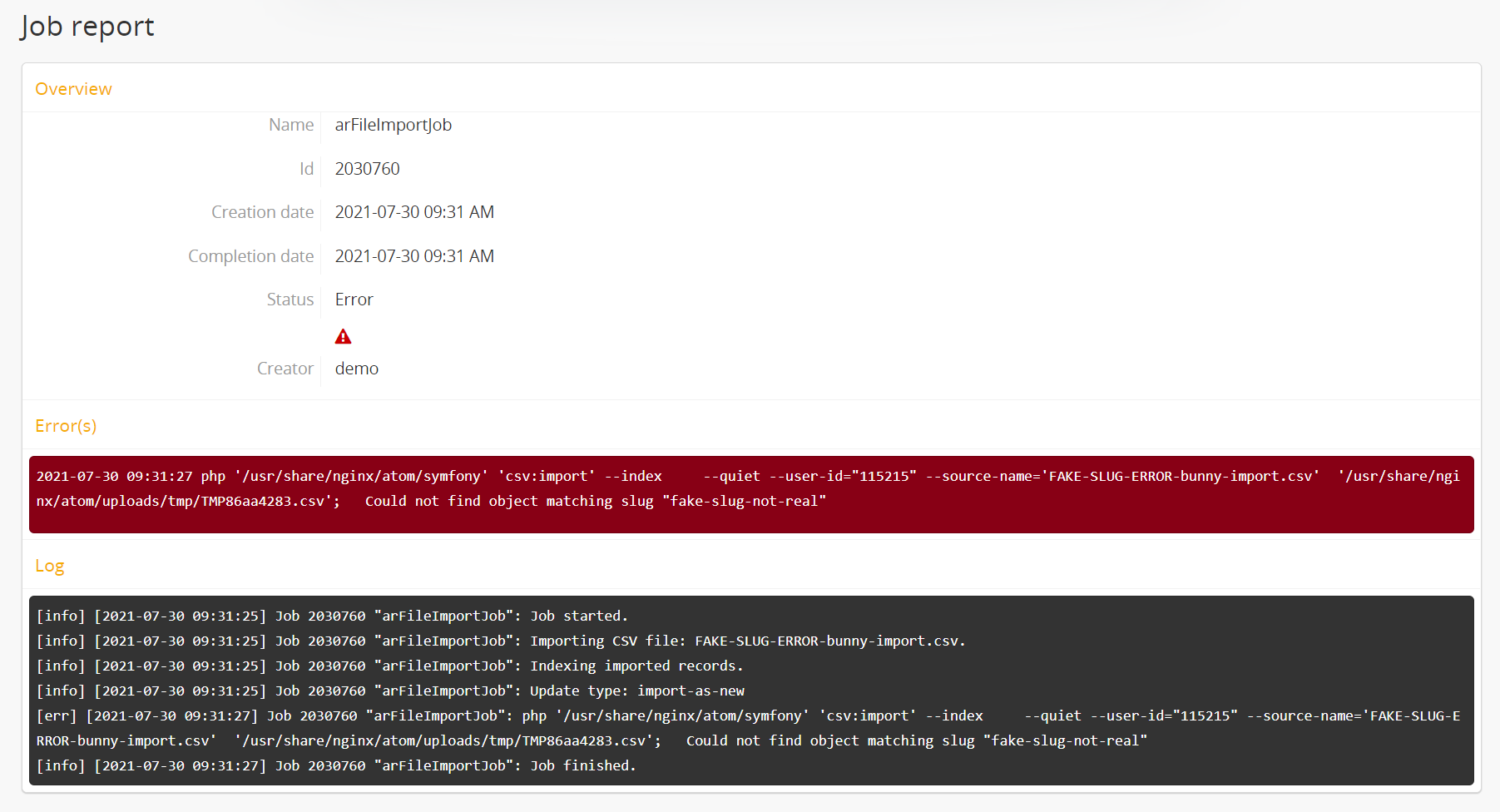

    In the example error pictured below, the CSV includes a qubitParentSlug value for a description that does not exist - so AtoM cannot attach the CSV row description to its intended parent:

An error message from a failed CSV import

Back to top

Update existing descriptions via CSV import

AtoM’s CSV import includes the ability to use the import to update existing descriptions in two different ways, depending on the outcome desired. After attempting to identify existing matches, AtoM can either delete the existing match and replace it with the matched row in the CSV import, or it can attempt to use the matched CSV row to update the description in-place with new data. Both options (and their limitations) will be explained further below, along with the additional import options available when importing updates.

Jump to:

Fields that will support update imports

Currently, not all fields in AtoM’s archival description metadata templates can be updated via import. Only those fields which are found in AtoM’s primary information_object and information_object_i18n database tables will support updates in place. Below is a list of supported fields:

  • title
  • identifier
  • levelOfDescription
  • repository
  • alternateTitle (in the RAD CSV template)
  • radEdition (in the RAD CSV template)
  • extentAndMedium
  • archivalHistory
  • acquisition
  • scopeAndContent
  • appraisal
  • accruals
  • arrangement
  • language
  • script
  • accessConditions
  • reproductionConditions
  • physicalCharacteristics
  • findingAids
  • locationOfOriginals
  • locationOfCopies
  • relatedUnitsOfDescription
  • digitalObjectPath
  • digitalObjectURI
  • rules
  • languageOfDescription
  • scriptOfDescription
  • sources
  • descriptionStatus
  • levelOfDetail
  • revisionHistory
  • institutionIdentifier
  • alternativeIdentifiers
  • alternativIdentifierLabels

Important

Please note that, while title, identifier, and repository can be updated via CSV import, they are also used as part of the matching criteria when importing updates via the user interface. As such, trying to update these fields via CSV import may cause the matching to fail.

See below for further information on AtoM’s import matching criteria:

Note that the command-line import task includes a --roundtrip option that, when used with the --update option, limits matching to the objectID value (included in the legacyID column on export). Using this option can allow for updates to title, identifier, and repository, since the only matching criteria used is the legacyID value in your import CSV. For more information, see:

There are also additional fields that are not stored in AtoM’s primary information object database tables that can potentially receive new data via an update import. In these cases, existing data will not be replaced - instead, the update import will append new data to the existing resources. These fields typically relate to note fields (such as all the custom note types in the RAD and DACS templates), or linked entities such as terms, authority records, etc.

Below is a list of fields to which new data can be appended via an update import - any existing data will be left in place:

  • accessionNumber
  • radGeneralMaterialDesignation
  • radTitleStatementOfResponsibilityNote
  • radTitleAttributionsAndConjectures
  • radTitleContinues
  • radTitleSourceOfTitleProper
  • radTitleVariationsInTitle
  • radTitleParallelTitles
  • subjectAccessPoints
  • placeAccessPoints
  • genreAccessPoints
  • nameAccessPoints
  • radNoteAccompanyingMaterial
  • radNoteAlphaNumericDesignation
  • radNoteConservation
  • radNoteEdition
  • radNotePhysicalDescription
  • radNotePublisherSeries
  • radNoteRights
  • radNoteCast
  • radNoteCredits
  • radNoteSignaturesInscriptions
  • generalNote
  • archivistNote
  • physicalObjectName
  • physicalObjectLocation
  • physicalObjectType

Finally, please note that eventActors (i.e. creators and other actors associated with different event types) and other related event fields are a special case. Please see the table in the section above to determine the matching criteria and resulting behavior:

Matching criteria for archival descriptions

AtoM uses the following cascading criteria when checking for matches on existing archival descriptions during a CSV import:

  • First AtoM will look for an exact match in the legacyID and the source_name value (for more information on source_name, see above: Legacy ID mapping: dealing with hierarchical data in a CSV). During a CSV import via the user interface, the default source name value stored will be the filename of the CSV.

Tip

You can always check what source name was used for records created via an import by entering into edit mode and navigating to the Administration area of the edit page - the source name used will be diplayed there:

An image of the source name used during import, shown in the Administration area of the AtoM edit page.
  • If no match is found on legacyID and source_name, then AtoM will look for an exact match on title, repository, and identifier.
  • If there is no exact match on all of these 3 values, then the record is considered not to have a match. Depending on user settings during import, it will either import as new, or be skipped and reported in the Job details page.

Tip

AtoM’s command-line CSV import includes an addtional option, called --roundtrip, that bypasses the above set of criteria. Instead, it will only look for an exact match on the legacyID value in your import CSV, against the unique internal database object ID associated with every record. AtoM populates the legacyId column with objectID values during export, so this option is useful when roundtripping (AKA exporting a CSV, updating its metadata, and then re-importing it as an update) in the same system. It’s also useful when you want to update the title, identifier, and repository values of a description, since otherwise these are used as matching criteria.

For more information, see:

The default behavior when no match is found during an updates import is to import the record as a new description. However, AtoM does have an option in the user interface (and in the command-line options) to skip unmatched records. When this option is selected, any records that do not match existing descriptions will be ignored during the import, and reported in the console log shown on the Job details page of the related import job (see: Manage jobs for more information). This is recommended if you are intending to only import updates to existing records.

An image of the matching options on the CSV import page

Warning

If you are working with hierarchical data and you include a parentID value in a CSV import that cannot be matched on import (for example, the parent is not included in the CSV, and a matching parentID is not found in the keymap table duing import, AtoM will add the record as a top-level description. The console output shown on the Job details page of the related import job will say “attaching to root” for that record.

If you don’t want this to happen, make sure you use the “Skip unmatched” option!

You can also narrow the scope of the matching criteria to either records linked to a specific repository (i.e. an archival institution), or a specific archival unit (i.e. a top-level description such as a fonds or collection, etc.). To avoid contradictory options, AtoM will only allow one of these parameters to be specified at a time. These options are useful for ensuring that you are matching the correct descriptions before updating them - for example, when importing updates to the records of one specific institution into a multi-repository system.

Update matches in place

AtoM’s first option for updates allows you to use incoming CSV data as an update to existing descriptions. Whenever a match is found for an existing description, AtoM will use the data in the CSV to update the related field in place. If a column is left blank in the updates CSV, it will be ignored (it will not overwrite existing data by erasing it).

To import a CSV as updates to existing descriptions, select the option “Update matches ignoring blank fields in CSV” from the “Update behaviours” drop-down menu on the CSV import page.

An image of the Update matches option in the CSV import user interface

Important

AtoM can only update description fields that are stored in the primary information object database table using this method. This means that related entities (such as events, creators, access points, physical storage locations, etc.) cannot be deleted or updated with this method. You can add additional related entities, but the old ones will be left in place. There is code to prevent duplication however - so if you have left the same creator/event information as previously, it will be ignored.

The one exception to this is updating the biographical or administrative history of a related authority record, which requires specifc criteria. See scenario 2B in the section above, Attempting to match to existing authority records on import.

Additionally, in AtoM notes are stored in a different database table - this includes the General note, Archivist’s note, and the RAD- and DACS-specific note type fields in AtoM’s archival description templates. This means that in addition to related entities, notes cannot be deleted or updated with this method

If you wish to make updates to these entitites or fields, consider using the “Delete and replace” update option instead - though be sure to read up on the behavior and limitations of that method as well!

If a match is not found during the import, the default behavior is to import the CSV row as a new record. If you are only importing updates, we recommend clicking the checkbox for the “Skip unmatched records” - AtoM will then skip any unmatched CSV rows and report them in the console log shown on the Job details page of the related import job.

Specific instructions on configuring the user interface for import are included below - see: Importing updates via the user interface.

Delete matches and replace with imported records

AtoM’s second update option allows you to identify matched descriptions during import, and then delete the matches prior to importing the CSV data as a new record to replace it.

Note that only the matched archival description and its children are deleted during this process. Any related/linked entities (such as an authority record linked as a creator, subject/place/name/genre access points, linked accession records, physical storage locations, etc.) are not automatically deleted. If you want these fully removed, you will have to find them and manually delete them via the user interface after the import.

Once the original matched archival description has been deleted, the CSV import proceeds as if the record is new. That is to say, just as AtoM does not automatically delete related entities in the original archival description, it also not automatically re-link previously related entities. Instead, AtoM will use its default matching behaviors to determine if related entities in the import (such as a creator in the eventActors CSV column) should be linked to existing records in AtoM, or created as new records during the import. AtoM’s matching criteria for authority records is outlined above - see: Attempting to match to existing authority records on import

To import an archival description CSV of records as replacements for existing descriptions in AtoM, select the “Delete matches and replace with imported records” option from the “Update behaviours” drop-down menu on the CSV import page.

An image of the Delete and replace updates option in the CSV import user interface

If a match is not found during the import, the default behavior is to import the CSV row as a new record. If you are only importing updates, you can click the checkbox for the “Skip unmatched records” if desired - AtoM will then skip any unmatched CSV rows and report them in the console log shown on the Job details page of the related import job.

Warning

It is very difficult to use the “Skip unmatched records” option with a “Delete and replace” import when working with hierarchical data. Once a match is found for the top-level description (e.g. the root parent record), AtoM will then proceed to delete the original description and all of its children (e.g. lower level records). This means that when AtoM gets to the next child row in the CSV, it will find no match in the database - because it has already deleted the children - and the records will therefore be skipped and not imported.

Unless you are only updating standalone descriptions (e.g. descriptions with no children), we do not recommend using the “Skip unmatched records” with the “Delete and replace” import update method.

Specific instructions on configuring the user interface for import are included below - see: Importing updates via the user interface.

Importing updates via the user interface

Important

Before proceeding, make sure that you have reviewed the preparation instructions above, to ensure that your CSV import will work. Here is a basic checklist of things to check for importing a CSV of archival descriptions updates via the user interface:

  • CSV file is saved with UTF-8 character encoding
  • CSV file uses Linux/Unix style end-of-line characters (/n)
  • All parent descriptions appear in rows above their children
  • All new parent records have a legacyID value, and all children include the parent’s legacyID value in their parentID column
  • No row uses both parentID and qubitParentSlug (only one should be used - if both are present AtoM will default to using the qubitParentSlug)
  • Any records to be imported as children of an existing record in AtoM use the proper qubitParentSlug of the existing parent record
  • You have reviewed the list of Fields that will support update imports
  • You have reviewed how the authority record matching behavior works above, and know what to expect with your import.
  • If you are using the “Delete and replace” method with hierarchical data - don’t use the “Skip unmatched records” option as well (see above, Delete matches and replace with imported records).
  • If you are using the “Update matches ignoring blank fields in CSV” option, you have reviewed which entities and fields cannot be updated using this method (see above, Update matches in place).

AtoM also supports a CSV validation task that can be run from the command-line or the user interface, that can help identify common errors in CSVs prior to import. For more information, see:

If you have double-checked the above, you should be ready to import your updates.

To import a CSV file of description updates via the user interface:

  1. Click on the import Import menu, located in the AtoM header bar, and select “CSV”.
The import menu
  1. AtoM will redirect you to the CSV import page. Make sure that the “Type” drop-down menu is set to “Archival description” .
The CSV import page in AtoM
  1. Select the type of update import you want to initiate.

    To update existing archival descriptions in place, select the option “Update matches ignoring blank fields in CSV” from the “Update behaviours” drop-down menu on the CSV import page.

    An image of the Update matches option in the CSV import user interface

    To delete existing matched archival descriptions and replace them with the data in your CSV, select the “Delete matches and replace with imported records” option from the “Update behaviours” drop-down menu on the CSV import page.

    An image of the Delete and replace updates option in the CSV import user interface

Tip

You can read more about each update option in the sections above:

  1. AtoM’s default behavior when it cannot find a match during an update import is to import the CSV row as a new record. However, if you are only importing updates and don’t want to accidentally create new records when no match is found, you can check the “Skip unmatched records” checkbox. Any unmatched records will not be imported - instead, skipped records will be reported in the Job details page of the related import job (see: Manage jobs for more information).
The Match options available on the archival description CSV import page.
  1. To improve the default matching behavior (described in detail above: Matching criteria for archival descriptions), you can provide further criteria to help AtoM find the correct match. You can limit the matches to either the holdings of a specific repository, or if you are updating a single archival unit, you can limit matches to a specific top-level description. To prevent contradictory options, these limiters are mutually exclusive - you cannot pick a repository AND a top-level description.

    To limit your matches to the holdings of a specifc archival institution, use the drop-down menu to select the name of the related institution

    To limit your matches to a specific top-level description, place your cursor in the “Top-level description” field and begin to slowly type the name of the top-level description. This field is an autcomplete menu - as you begin to type, AtoM will display matching records in the drop-down menu that will appear below. When you see the top-level description you want to use as a match limit, click on it in the drop-down menu to select it.

  2. If you do not want your files indexed during the import, you can click the checkbox labelled “Do not index imported items.” This will prevent the new records from automatically being added to AtoM’s search index.

Warning

If you do not index your records during import, they will not be discoverable via search or browse in the user interface! You will need to know the exact URL to reach them. To make them visible in the interface again, a system administrator will need to rebuild the search index. See: Populate search index.

  1. When you have configured your import options, click the “Browse” button to open a window on your local computer. Select the CSV file that you would like to import as your update.
Clicking the "Browse" button in the CSV import page
  1. When you have selected the file from your device, its name will appear next to the “Browse” button. Click the “Import” button located in the button block to begin your import.
Starting a CSV import update in AtoM

Note

Depending on the size of your CSV import, this can take some time to complete. Be patient! Remember, you can always check on the status of an import by reviewing the Job details page of the related import job - see: Manage jobs for more information.

  1. After your import is complete, AtoM will indicate that the import has been initiated. A notification at the top of the page will also provide you with a link to the Job details page of the related import job. Alternatively, you can click the “Back” button in the button block at the bottom of the page to return to the CSV import page, or navigate elsewhere in the application.
When a CSV import has been initiated in AtoM

Tip

Want to find your recently updated records? You can use the sort buttons located in the top-right hand side of the archival description browse page to change the results display to be ordered by “Date modified” in “Descending” direction if they are not already - that way, the most recently added or edited descriptions will appear at the top of the results. If you have come directly here after importing your descriptions, they should appear at the top of the results.

The browse page following a CSV import
  1. If any warnings or errors are encountered, AtoM will display them on Job details page of the related import job. Generally, errors will cause an import to fail, while warnings will be logged but will allow the import to proceed anyway - however, an administrator can configure the CSV import validation to run automatically on all imports, and when this setting is set to “strict” even warnings will prevent a CSV import from proceeding. For more information, see:

    Errors and warnings can occur for many reasons - please review the checklist above for suggestions on resolving the most common reasons that CSV imports fail. Note that validation can also be run independently of an import - doing so via the user interface will also generate a downloadable TXT file report with further details on errors and warnings encountered, that should help you troubleshoot any issues. See the CSV Validation documentation for further details.

Back to top

Prepare events for CSV import

The Events CSV import can be used to supplement the types of events that associate an actor (represented in AtoM by an authority record) and an information object (represented in AtoM by an archival description. In AtoM’s data model, an archival description is a description of a record, understood as the documentary evidence created by an action - or event. It is events that link actors to descriptions - see Entity types for more information, and see the section above for more information on actors and events in the archival description CSV: Creator-related import columns (actors and events). The Events CSV can be useful for adding other event types to relate actors to descriptions, such as publication, broadcasting, editing, etc. At this time, the events import will only work with archival descriptions that have been created via import.

The event import processes 3 CSV columns: legacyId, eventActorName, and eventType. The legacyId should be the legacy ID of the information object the event will be associated with. The eventActorName and eventType specify the name of the actor involved in the event and the type of event. An example CSV template file is available in the AtoM source code (lib/task/import/example_events.csv) or can be downloaded here:

Important

Before proceeding, make sure that you have reviewed the general CSV instructions above, to ensure that your CSV import will work. Here is a basic checklist of things to check before importing a CSV of events:

  • The target description was imported using either the command line or the CSV import in the user interface - events import will not work with descriptions created in the user interface.
  • The CSV file is saved with UTF-8 character encoding
  • The CSV file uses Linux/Unix style end-of-line characters (/n)
  • All legacyID values entered correspond to the legacyID values of their corresponding archival descriptions
  • The events CSV file should be renamed to match the source_name value of the previous import. See above for more information, Legacy ID mapping: dealing with hierarchical data in a CSV.
  • If you are referencing existing authority records already in AtoM, make sure that the name used in the actorName column matches the authorized form of name in the authority record exactly. See above for more information on how AtoM attempts to identify authority record matches: Attempting to match to existing authority records on import.

AtoM also supports a CSV validation task that can be run from the command-line or the user interface, that can help identify common errors in CSVs prior to import. For more information, see:

If you have double-checked the above, you should be ready to import your events.

Import events via CSV

To import an events CSV file via the user interface:

  1. Click on the import Import menu, located in the AtoM header bar, and select “CSV”.
The import menu
  1. AtoM will redirect you to the CSV import page. Make sure that the “Type” drop-down menu is set to “Event”.

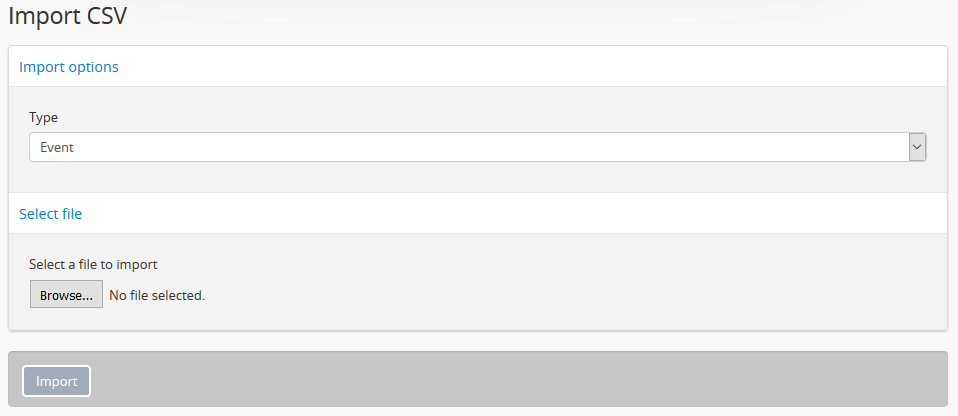

The CSV Events import page in AtoM
  1. Click the “Browse” button to open a window on your local computer. Select the events CSV file that you would like to import.
Clicking the "Browse" button in the CSV import page
  1. If you do not want your files indexed during the import, you can click the checkbox labelled “Do not index imported items.” This will prevent the new records from automatically being added to AtoM’s search index.

Warning

If you do not index your records during import, they will not be discoverable via search or browse in the user interface! You will need to know the exact URL to reach them. To make them visible in the interface again, a system administrator will need to rebuild the search index. See: Populate search index.

  1. When you have selected the file from your device, its name will appear next to the “Browse” button. Click the “Import” button located in the button block to begin your import.
The import button on the CSV import page

Note

Depending on the size of your CSV import, this can take some time to complete. Be patient! Remember, you can always check on the status of an import by reviewing the Job details page of the related import job - see: Manage jobs for more information.

  1. After your import is complete, AtoM will indicate that the import has been initiated. A notification at the top of the page will also provide you with a link to the Job details page of the related import job. Alternatively, you can click the “Back” button in the button block at the bottom of the page to return to the CSV import page, or navigate elsewhere in the application.
When a CSV import has been initiated in AtoM

Warning

There is a known bug in AtoM where Events that are imported via CSV will require further manual editing post-import to make them visible in AtoM’s user interface. Please see note 7 in the following issue ticket for more information:

  1. If any warnings or errors are encountered, AtoM will display them on Job details page of the related import job. Generally, errors will cause an import to fail, while warnings will be logged but will allow the import to proceed anyway - however, an administrator can configure the CSV import validation to run automatically on all imports, and when this setting is set to “strict” even warnings will prevent a CSV import from proceeding. For more information, see:

    Errors and warnings can occur for many reasons - please review the checklist above for suggestions on resolving the most common reasons that CSV imports fail. Note that validation can also be run independently of an import - doing so via the user interface will also generate a downloadable TXT file report with further details on errors and warnings encountered, that should help you troubleshoot any issues. See the CSV Validation documentation for further details.

Prepare archival institution records for CSV import

You can import repositories (i.e. archival institutions into AtoM as well. At this time, there is not support for importing all repository record data fields into AtoM. However, most fields are supported.

Find the example CSV import template here:

Repository CSV columns

The legacyID column is a required field, used only internally. Add a unique numeric value to this column. The legacyID can be used to assist in matching multiple CSV import types. Further information is provided in the section on legacy ID mapping above - see: Legacy ID mapping: dealing with hierarchical data in a CSV.

The uploadLimit column allows a user to set a default upload limit for a repository at the time of import. This value should be a number, representing Gigabytes. For more information on the use of respository upload limits in AtoM, see: Set digital object upload limit for an archival institution.

The types column relates to the institution type found in the Identity information area of the archival institution edit page. It is linked to the “Repository Types” taxonomy in AtoM, which comes pre-populated with 22 terms. New terms added via the CSV import will be created successfully and be added to the Repository Types taxonomy. You can add multiple terms by using the | pipe character between them, like so:

Arts Organization|Community

Almost all other fields are drawn directly from the archival institution edit template in AtoM, which is based upon the International Council on Archives’ International Standard for Describing Institutions with Archival Holdings (ISDIAH). For more information on the use of each field and a link to the related standard, see: ISDIAH edit template. Generally, fields in the CSV template have been named in a fairly obvious way, translating a simplified version of the field name in our data entry templates into a condensed camelCase. For example, ISDIAH 5.3.2, Geographical and cultural context (in the Description Area) becomes geoCulturalContext in the CSV template. Consult the ISDIAH page for further help with fields.

The descStatus and descDetail columns are both also related to controlled term taxonomies in AtoM - the “Description Statuses” and “Description Detail Levels” taxonomies respectively. The descStatus column has the following default terms available for use:

  • Final
  • Revised
  • Draft

The descDetails column has the following default terms available for use:

  • Full
  • Minimal
  • Partial

The culture column indicates to AtoM the language of the records being uploaded. This column expects two-letter ISO 639-1 language code values - for example, “en” for English; “fr” for French, “it” for Italian, etc. See Wikipedia for a full list of ISO 639-1 language codes, and see the following link for a full list of AtoM supported languages and corresponding culture codes:

See also

Import new archival institutions via CSV

Important

Before proceeding, make sure that you have reviewed the “Before you import” instructions above, to ensure that your CSV import will work. Most importantly, make sure your:

AtoM also supports a CSV validation task that can be run from the command-line or the user interface, that can help identify common errors in CSVs prior to import. For more information, see:

To import new archival institutions via the user interface:

  1. Click on the import Import menu, located in the AtoM header bar, and select “CSV”.
The import menu
  1. AtoM will redirect you to the CSV import page. Make sure that the “Type” drop-down menu is set to “Archival institution”. For new repository records, make sure that the “Update behaviors” drop-down menu is set to “Ignore matches and create new records on import”.

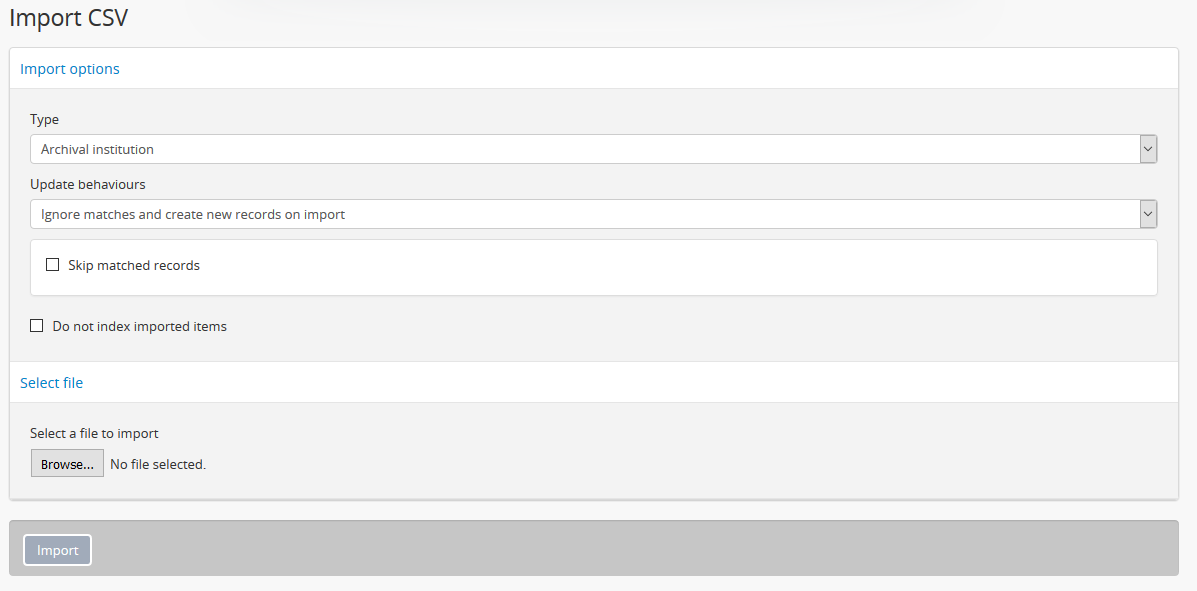

The CSV import page in AtoM, set for new Archival institutions
  1. AtoM can also double-check to see if a repository with an authorized form of name that exactly matches your import(s) already exists, and skip these records during import if desired. To skip any exact matches, check the “Skip matched records” checkbox. AtoM will report any skipped rows in the console output provided on the Job details page of the related import job - see: Manage jobs for more information.

    The console output on the Job details page will include something similar to the following example when a match is found and skipped:

    [info] [2018-01-01 14:06:04] Job 2003115 "arFileImportJob": Row 1: Matching record found for "Example Archives", skipping.

  2. If you do not want your files indexed during the import, you can click the checkbox labelled “Do not index imported items.” This will prevent the new records from automatically being added to AtoM’s search index.

Warning

If you do not index your records during import, they will not be discoverable via search or browse in the user interface! You will need to know the exact URL to reach them. To make them visible in the interface again, a system administrator will need to rebuild the search index. See: Populate search index.

  1. Click the “Browse” button to open a window on your local computer. Select the Repositories CSV file that you would like to import.
Clicking the "Browse" button in the CSV import page
  1. When you have selected the file from your device, its name will appear next to the “Browse” button. Click the “Import” button located in the button block to begin your import.
The import button on the CSV import page

Note

Depending on the size of your CSV import, this can take some time to complete. Be patient! Remember, you can always check on the status of an import by reviewing the Job details page of the related import job - see: Manage jobs for more information.

  1. After your import is complete, AtoM will indicate that the import has been initiated. A notification at the top of the page will also provide you with a link to the Job details page of the related import job. Alternatively, you can click the “Back” button in the button block at the bottom of the page to return to the CSV import page, or navigate elsewhere in the application.
When a CSV import has been initiated in AtoM
  1. If any warnings or errors are encountered, AtoM will display them on Job details page of the related import job. Generally, errors will cause an import to fail, while warnings will be logged but will allow the import to proceed anyway - however, an administrator can configure the CSV import validation to run automatically on all imports, and when this setting is set to “strict” even warnings will prevent a CSV import from proceeding. For more information, see:

    Errors and warnings can occur for many reasons - please review the checklist above for suggestions on resolving the most common reasons that CSV imports fail. Note that validation can also be run independently of an import - doing so via the user interface will also generate a downloadable TXT file report with further details on errors and warnings encountered, that should help you troubleshoot any issues. See the CSV Validation documentation for further details.

Update archival institutions via CSV import

AtoM’s CSV import includes the ability to use the import to update existing archival institution in two different ways, depending on the outcome desired. After attempting to identify existing matches, AtoM can either delete the existing match and replace it with the matched row in the CSV import, or it can attempt to use the matched CSV row to update the repository record in-place with new data.

Both options (and their limitations) will be explained further below, along with any additional import options available when importing updates.

Jump to:

When importing updates, AtoM will attempt to match against the existing repository records using the authorized form of name of the repository. This means that it is not currently possible to use the update functionality to change the name of your repository record. If the authorized form of name is edited then no match will be found.

By default, when no match is found, AtoM will proceed to create a new record instead. If you do not want this to happen, you can click the “Skip unmatched records” checkbox. When no matches are found with this option checked, AtoM will skip the unmatched CSV row and report it in the console output found on the Job details page of the related import job - see: Manage jobs for more information.

Updating repository records in place via CSV import

AtoM’s first option for archival institution updates allows you to use incoming CSV data as an update to existing repository records. Whenever a match is found for an existing repository (based on the authorized form of name), AtoM will use the data in the CSV to update the related field in place. If a column is left blank in the updates CSV, it will be ignored (it will not overwrite existing data by erasing it).

To import a CSV as updates to existing repository records, select the option “Update matches ignoring blank fields in CSV” from the “Update behaviours” drop-down menu on the CSV import page.

An image of the Update matches option in the CSV import user interface

Important

At this time, not all fields in the archival institution record can be updated. Primarily, these are fields that are found in other tables in the AtoM database than the primary repository record table. Examples of fields that cannot be updated include:

  • Name (changing the repository name in your CSV will cause the match to fail)
  • Parallel form(s) of name
  • Other form(s) of name
  • Institution type
  • Locality, Revion, Country, and Postal code in Contact area
  • Languages
  • Scripts
  • Status
  • Level of detail
  • Thematic area
  • Geographic subregion

If you wish to update these fields, you might want to either make the changes manually, or consider the “delete and replace” method. However, please read the details below on the limitations of Delete and replace as well before proceeding!

If a match is not found during the import, the default behavior is to import the CSV row as a new record. If you are only importing updates, you can click the checkbox for the “Skip unmatched records” if desired - AtoM will then skip any unmatched CSV rows and report them in the console log shown on the Job details page of the related import job.

See below for step-by-step instructions on importing repository updates via the user interface.

Deleting and replacing repository records via CSV import

AtoM’s second update option allows you to identify matched repositories during import, and then delete the matches prior to importing the CSV data as a new record to replace it.

Note that only the matched archival institution record is deleted during this process. Any related/linked entities (such as an authority record linked as being maintained by the repository, Thematic area or other repository access points, and linked archival descriptions) are not automatically deleted. If you also want these fully removed, you will have to find them and manually delete them via the user interface after the import.

Once the original matched repository record has been deleted, the CSV import proceeds as if the record is new. That is to say, just as AtoM does not automatically delete entities related to the original archival institution, it also not automatically re-link previously related entities.

Warning

This means that if your archival institution record is linked to descriptions, using the “Delete and replace” method will unlink all descriptions - these will not be automatically re-linked with the new import!

We recommend you only use the “Delete and replace” method with repository records that are not currently linked to other entities.

To import an archival institution CSV of records as replacements for existing repositories in AtoM, select the “Delete matches and replace with imported records” option from the “Update behaviours” drop-down menu on the CSV import page.

An image of the Delete and replace updates option in the CSV import user interface

If a match is not found during the import, the default behavior is to import the CSV row as a new record. If you are only importing updates, you can click the checkbox for the “Skip unmatched records” if desired - AtoM will then skip any unmatched CSV rows and report them in the console log shown on the Job details page of the related import job.

See below for step-by-step instructions on importing repository updates via the user interface.

Importing repository updates in the user interface

Important

Before proceeding, make sure that you have reviewed the “Before you import” instructions above, to ensure that your CSV import will work. Most importantly, make sure your:

  • CSV file is saved with UTF-8 character encoding
  • CSV file uses Linux/Unix style end-of-line characters (/n)
  • You have prepared your repository CSV data following the recommendations in the section above, Prepare archival institution records for CSV import
  • You have confirmed that the authorized form of name of the repository record in your CSV matches exactly the repository record in AtoM you wish to update
  • You have reviewed the sections above on each of the update behaviors and their limitations, and know what to expect.

AtoM also supports a CSV validation task that can be run from the command-line or the user interface, that can help identify common errors in CSVs prior to import. For more information, see:

If you have double-checked the above, you should be ready to import your updates.

To import a CSV file of repository updates via the user interface:

  1. Click on the import Import menu, located in the AtoM header bar, and select “CSV”.
The import menu
  1. AtoM will redirect you to the CSV import page. Make sure that the “Type” drop-down menu is set to “Archival institution” .
The CSV import page in AtoM
  1. Select the type of update import you want to initiate.

    To update existing archival institutions in place, select the option “Update matches ignoring blank fields in CSV” from the “Update behaviours” drop-down menu on the CSV import page.

    An image of the Update matches option in the CSV import user interface

    To delete existing matched archival institutions and replace them with the data in your CSV, select the “Delete matches and replace with imported records” option from the “Update behaviours” drop-down menu on the CSV import page.

    An image of the Delete and replace updates option in the CSV import user interface

Tip

You can read more about each update option in the sections above:

  1. AtoM’s default behavior when it cannot find a match during an update import is to import the CSV row as a new record. However, if you are only importing updates and don’t want to accidentally create new records when no match is found, you can check the “Skip unmatched records” checkbox. Any unmatched records will not be imported - instead, skipped records will be reported in the Job details page of the related import job (see: Manage jobs for more information).
The Skip unmatched records option on the CSV import page
  1. If you do not want your files indexed during the import, you can click the checkbox labelled “Do not index imported items.” This will prevent the new records from automatically being added to AtoM’s search index.

Warning

If you do not index your records during import, they will not be discoverable via search or browse in the user interface! You will need to know the exact URL to reach them. To make them visible in the interface again, a system administrator will need to rebuild the search index. See: Populate search index.

  1. When you have configured your import options, click the “Browse” button to open a window on your local computer. Select the CSV file that you would like to import as your update.
Clicking the "Browse" button in the CSV import page
  1. When you have selected the file from your device, its name will appear next to the “Browse” button. Click the “Import” button located in the button block to begin your import.
The import button on the CSV import page

Note

Depending on the size of your CSV import, this can take some time to complete. Be patient! Remember, you can always check on the status of an import by reviewing the Job details page of the related import job - see: Manage jobs for more information.

  1. After your import is complete, AtoM will indicate that the import has been initiated. A notification at the top of the page will also provide you with a link to the Job details page of the related import job. Alternatively, you can click the “Back” button in the button block at the bottom of the page to return to the CSV import page, or navigate elsewhere in the application.
When a CSV import has been initiated in AtoM
  1. If any warnings or errors are encountered, AtoM will display them on Job details page of the related import job. Generally, errors will cause an import to fail, while warnings will be logged but will allow the import to proceed anyway - however, an administrator can configure the CSV import validation to run automatically on all imports, and when this setting is set to “strict” even warnings will prevent a CSV import from proceeding. For more information, see:

    Errors and warnings can occur for many reasons - please review the checklist above for suggestions on resolving the most common reasons that CSV imports fail. Note that validation can also be run independently of an import - doing so via the user interface will also generate a downloadable TXT file report with further details on errors and warnings encountered, that should help you troubleshoot any issues. See the CSV Validation documentation for further details.

Back to top

Prepare authority records for CSV import

The authority record import tool allows you to import data about people, families, and organizations. In addition to importing data detailing these entities, the tool also allows the import of supplementary data on how these entities relate to each other (See Prepare authority record relationships for CSV import).

You can view the example CSV files for authority records in the AtoM code (at lib/task/import/example/authority_records/) or they can be downloaded directly here:

Important

If you are attempting to import both an archival description CSV and an authority record CSV to supplement the actor data that is linked to your descriptions, you must import the authority record CSV first. On import, the description CSV code will look for exact matches to which it can link - but the authority record CSV import code does not currently have similar logic. If you import your authority record CSV template after the description CSV, you might end up creating duplicate authority records!

For more information on how the archival description import manages the identification and linking of existing authority records, see: Attempting to match to existing authority records on import.

A brief explanation of the main fields in authority record CSV template is included below.

See also

The culture column indicates to AtoM the language of the records being uploaded. This column expects two-letter ISO 639-1 language code values - for example, “en” for English; “fr” for French, “it” for Italian, etc. See Wikipedia for a full list of ISO 639-1 language codes, and see the following link for a full list of AtoM supported languages and corresponding culture codes:

See also

The typeOfEntity column maps to the entity type terms recommended in ISAAR-CPF 5.1.1 Type of Entity, and maintained in AtoM in the Actor Entity Types taxonomy. This column expects one of three recommended values - Person, Corporate body, or Family.

Almost all other fields are drawn directly from the authority record edit template in AtoM, which is based upon the International Council on Archives’ International Standard Archival Authority Record for Corporate Bodies, Persons and Famillies (ISAAR-CPF). For more information on the use of each field, see the Data entry page on the ISAAR-CPF template and consult the related standard. See also: Authority records.

Most fields in the CSV template have been named in a fairly obvious way, translating a simplified version of the field name in our data entry templates into a condensed camelCase. For example, ISAAR 5.2.1, Dates of Existence (in the ISAAR Description Area) becomes datesOfExistence in the CSV template. Consult the ISDIAH data entry page for further help with fields.

The history column, which conforms to ISAAR 5.2.2, will appear as the Administrative or Biographical history in any archival description to which an authority record is linked. For more information on how AtoM manages authority records, see: Authority records.

The status and levelOfDetail columns are both also related to controlled term taxonomies in AtoM - the “Description Statuses” and “Description Detail Levels” taxonomies respectively. The status column has the following default terms available for use:

  • Final
  • Revised
  • Draft

The levelOfDetail column has the following default terms available for use:

  • Full
  • Minimal
  • Partial

As long as they are separated with a pipe character (|), multiple values can be included in a single column for the following multi-value fields:

  • parallelFormsOfName
  • standardizedFormsOfName
  • otherFormsOfName
  • actorOccupations
  • actorOccupationNotes
  • subjectAccessPoints
  • placeAccessPoints

You can upload a digital object to link to the authority record (e.g. a profile picture of the authority record’s subject) by including its relative file path on the AtoM server in the digitalObjectPath column or by including a link to the digital object’s external online location in the digitalObjectURI column.

Tip

Fields that are available in the Relationships area of the authority record user interface are not available in this CSV template. However, you can use a separate CSV template to import these via the same user interface. See Prepare authority record relationships for CSV import. A system administrator can also import authority record relationship data with additional “match-and-replace” or “delete-and-replace” options via the command-line interface. For more information, see: Import authority record relationships.

Import new authority records via CSV

Important

Before proceeding, make sure that you have reviewed the “Before you import” instructions above, to ensure that your CSV import will work. Most importantly, make sure:

  • Your CSV file is saved with UTF-8 character encoding
  • Your CSV file uses Linux/Unix style end-of-line characters (/n)
  • If you intend to import archival descriptions as well and hope to link them to your authority records, make sure you are importing the authority records CSV first, that the authorized form of name used in the authority records CSV matches exactly the name used in the eventActors column of the related descriptions CSV. Be sure you also review how AtoM attempts to link descriptions to existing authority records on import - see: Attempting to match to existing authority records on import
  • You’ve reviewed the instructions in the section above on preparing your CSV file and have made sure it conforms to the recommendations. See: Prepare authority records for CSV import.

AtoM also supports a CSV validation task that can be run from the command-line or the user interface, that can help identify common errors in CSVs prior to import. For more information, see:

To import authority records via the user interface:

  1. Click on the import Import menu, located in the AtoM header bar, and select “CSV”.
The import menu
  1. AtoM will redirect you to the CSV import page. Make sure that the “Type” drop-down menu is set to “Authority record”. For new authority records, make sure that the “Update behaviors” drop-down menu is set to “Ignore matches and create new records on import”.

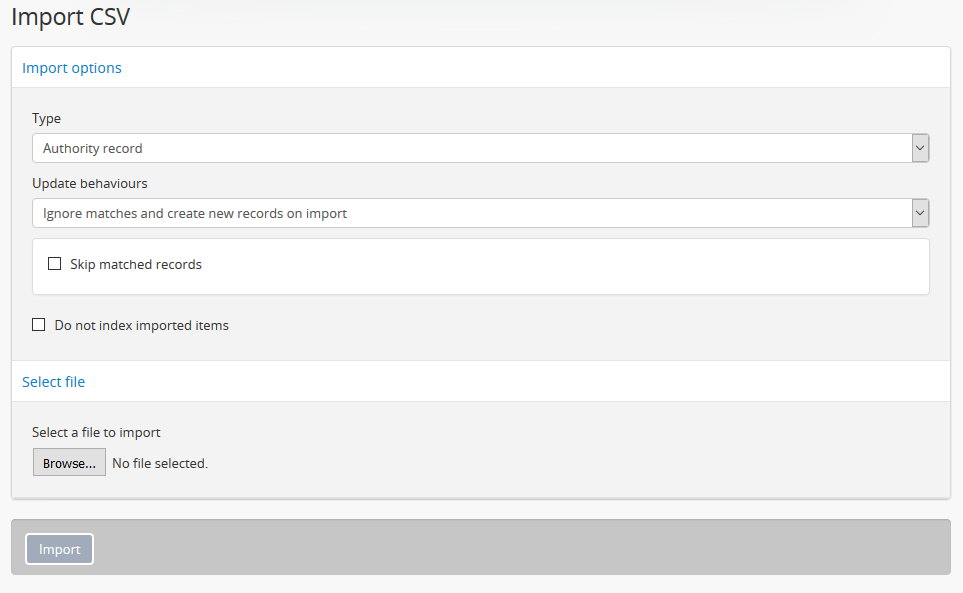

The CSV import page in AtoM, set to import new Authority records
  1. AtoM can also double-check to see if an authority record with an authorized form of name that exactly matches your import(s) already exists, and skip these records during import if desired. To skip any exact matches, check the “Skip matched records” checkbox. AtoM will report any skipped rows in the console output provided on the Job details page of the related import job - see: Manage jobs for more information.

    The console output on the Job details page will include something similar to the following example when a match is found and skipped:

    [info] [2018-01-01 15:01:04] Job 2003116 "arFileImportJob": Row 1: Matching record found for "Jane Doe", skipping.

  2. If you do not want your files indexed during the import, you can click the checkbox labelled “Do not index imported items.” This will prevent the new records from automatically being added to AtoM’s search index.

Warning

If you do not index your records during import, they will not be discoverable via search or browse in the user interface! You will need to know the exact URL to reach them. To make them visible in the interface again, a system administrator will need to rebuild the search index. See: Populate search index.

  1. Click the “Browse” button to open a window on your local computer. Select the Authority record CSV file that you would like to import.
Clicking the "Browse" button in the CSV import page
  1. When you have selected the file from your device, its name will appear next to the “Browse” button. Click the “Import” button located in the button block to begin your import.
The import button on the CSV import page

Note

Depending on the size of your CSV import, this can take some time to complete. Be patient! Remember, you can always check on the status of an import by reviewing the Job details page of the related import job - see: Manage jobs for more information.

  1. After your import is complete, AtoM will indicate that the import has been initiated. A notification at the top of the page will also provide you with a link to the Job details page of the related import job. Alternatively, you can click the “Back” button in the button block at the bottom of the page to return to the CSV import page, or navigate elsewhere in the application.
When a CSV import has been initiated in AtoM
  1. If any warnings or errors are encountered, AtoM will display them on Job details page of the related import job. Generally, errors will cause an import to fail, while warnings will be logged but will allow the import to proceed anyway - however, an administrator can configure the CSV import validation to run automatically on all imports, and when this setting is set to “strict” even warnings will prevent a CSV import from proceeding. For more information, see:

    Errors and warnings can occur for many reasons - please review the checklist above for suggestions on resolving the most common reasons that CSV imports fail. Note that validation can also be run independently of an import - doing so via the user interface will also generate a downloadable TXT file report with further details on errors and warnings encountered, that should help you troubleshoot any issues. See the CSV Validation documentation for further details.

Back to top

Update authority records via CSV import

AtoM’s CSV import includes the ability to use the import to update existing authority records in two different ways, depending on the outcome desired. After attempting to identify existing matches, AtoM can either delete the existing match and replace it with the matched row in the CSV import, or it can attempt to use the matched CSV row to update the authority record in-place with new data.

Both options (and their limitations) will be explained further below, along with any additional import options available when importing updates.

Jump to:

When importing updates, AtoM will attempt to match against the existing authority records using the authorized form of name of the existing actor (a.k.a. authority record). This means that it is not currently possible to use the update functionality to change the name of your authority record. If the authorized form of name is edited then no match will be found.

If you have previously linked your authority records to a repository (for more information, see: Link an authority record to a repository as its maintainer), then it is possible to increase the likelihood of a successful match on import by limiting the update to only those authority records associated with a particular repository.

An image of the Authority record update option in the CSV import user interface

By default, when no match is found, AtoM will proceed to create a new record instead. If you do not want this to happen, you can click the “Skip unmatched records” checkbox. When no matches are found with this option checked, AtoM will skip the unmatched CSV row and report it in the console output found on the Job details page of the related import job - see: Manage jobs for more information.

Authority record fields that will support update imports

Currently not all fields in AtoM’s authority record metadata template can be updated via import. Only those fields which are found in AtoM’s primary actor and actor_i18n database tables will support updates in place. Additionally, because the authorizedFormOfName field is used for matching on import, editing this field will cause a match to fail - meaning it can’t be updated via CSV import. Below is a list of supported fields that can be updated in place:

  • typeOfEntity
  • corporateBodyIdentifiers
  • datesOfExistence
  • history
  • places
  • legalStatus
  • functions
  • mandates
  • internalStructures
  • generalContext
  • digitalObjectURI
  • digitalObjectPath
  • descriptionIdentifier
  • institutionIdentifier
  • rules
  • status
  • levelOfDetail
  • revisionHistory
  • sources
  • maintenanceNotes

Note

While the typeOfEntity can be updated via CSV import, at present the import will only succeed when using terms that have already been added to the Actor Entity Types taxonomy. If you try to add a new entity type via import without first adding it to the taxonomy, the import will fail!

There are also additional fields that are not stored in AtoM’s primary authority record database tables that can potentially receive new data via an update import. In these cases, existing data will not be replaced - instead, the update import will append new data to the existing resources, leaving the current data in place as well. These fields typically relate to access point fields (such as subjects, places, and occupations), as well as alternative forms of name.

Below is a list of fields to which new data can be appended via an update import - any existing data will be left in place:

  • parallelFormsOfName
  • standardizedFormsOfName
  • otherFormsOfName
  • actorOccupations
  • actorOccupationNotes
  • subjectAccessPoints
  • placeAccessPoints

Note

Attempting to update the note associated with an existing actor occupation access point will cause the access point to be duplicated - the updated note will be associated with the new duplicate term.

Update authority records in place via CSV import

AtoM’s first option for authority record updates allows you to use incoming CSV data as an update to existing authority records in place. Whenever a match is found for an existing authority record (based on the authorized form of name), AtoM will use the data in the CSV to update the related field in place. If a column is left blank in the updates CSV, it will be ignored (it will not overwrite existing data by erasing it).

To import a CSV as updates to existing authority records, select the option “Update matches ignoring blank fields in CSV” from the “Update behaviours” drop-down menu on the CSV import page.

An image of the Update matches option in the CSV import user interface

Important

At this time, not all fields in the authority record can be updated. Primarily, these are fields that are found in other tables in the AtoM database than the primary authority record table. Please see the list of supported fields in the section above for more information.

If you wish to update these fields, you might want to either make the changes manually, or consider the “delete and replace” method. However, please read the details below on the limitations of Delete and replace as well before proceeding!

See below for step-by-step instructions on importing repository updates via the user interface.

Delete and replace existing authority records via CSV import

AtoM’s second update option allows you to identify matched authority records during import, and then delete the matches prior to importing the CSV data as a new record to replace it.

Note that only the matched authority record is deleted during this process. Any related/linked entities (such as a repository linked as the authority record’s maintainer, other authority records linked via a relationship, Occupation access points, and linked archival descriptions) are not also automatically deleted. If you also want these fully removed, you will have to find them and manually delete them via the user interface after the import.

Once the original matched authority record has been deleted, the CSV import proceeds as if the record is new. That is to say, just as AtoM does not automatically delete entities related to the original archival institution, it also does not automatically re-link previously related entities.

Warning

This means that if your authority record is linked to descriptions, a repository, or other authority records, using the “Delete and replace” method will unlink all related descriptions, repositories, and authority records - these will not be automatically re-linked with the new import!

We recommend you only use the “Delete and replace” method with authority records that are not currently linked to other entities.

For more information on linking authority records, see:

To import an archival institution CSV of records as replacements for existing repositories in AtoM, select the “Delete matches and replace with imported records” option from the “Update behaviours” drop-down menu on the CSV import page.

An image of the Delete and replace updates option in the CSV import user interface

See below for step-by-step instructions on importing authority record updates via the user interface.

Updating authority records via import in the user inteface

Important

Before proceeding, make sure that you have reviewed the “Before you import” instructions above, to ensure that your CSV import will work. Most importantly, make sure your:

  • CSV file is saved with UTF-8 character encoding
  • CSV file uses Linux/Unix style end-of-line characters (/n)
  • You have prepared your authority record CSV data following the recommendations in the section above, Prepare authority records for CSV import
  • You have confirmed that the authorized form of name of the authority record in your CSV matches exactly the authority record in AtoM you wish to update
  • You are aware that using the “Delete and replace” update option will remove the links between all related entities (descriptions, other authority records, repositories, access points, etc) - though it will not delete these entities.
  • You have reviewed the sections above on each of the update behaviors and their limitations, and know what to expect.

AtoM also supports a CSV validation task that can be run from the command-line or the user interface, that can help identify common errors in CSVs prior to import. For more information, see:

If you have double-checked the above, you should be ready to import your updates.

To import a CSV file of authority record updates via the user interface:

  1. Click on the import Import menu, located in the AtoM header bar, and select “CSV”.
The import menu
  1. AtoM will redirect you to the CSV import page. Make sure that the “Type” drop-down menu is set to “Archival institution” .
The CSV import page in AtoM
  1. Select the type of update import you want to initiate.

    To update existing authority records in place, select the option “Update matches ignoring blank fields in CSV” from the “Update behaviours” drop-down menu on the CSV import page.

    An image of the Update matches option in the CSV import user interface

    To delete existing matched authority records and replace them with the data in your CSV, select the “Delete matches and replace with imported records” option from the “Update behaviours” drop-down menu on the CSV import page.

    An image of the Delete and replace updates option in the CSV import user interface
  1. AtoM’s default behavior when it cannot find a match during an update import is to import the CSV row as a new record. However, if you are only importing updates and don’t want to accidentally create new records when no match is found, you can check the “Skip unmatched records” checkbox. Any unmatched records will not be imported - instead, skipped records will be reported in the Job details page of the related import job (see: Manage jobs for more information).

  2. To improve the default matching behavior (based on the authorized form of name of the authority record), you can provide further criteria to help AtoM find the correct match. If you have linked your authority record(s) to a repository as the maintainer, then you can limit the matches to either the authority records of a specific repository. To learn more about linking an authority record to a repository, see: Link an authority record to a repository as its maintainer.

    To limit your matches to the holdings of a specifc archival institution, use the drop-down menu to select the name of the related repository.

    If you previously created your repository record via CSV import, it will sometimes not appear at first in the drop-down menu. Try to begin typing the first letters of the target repository name when your cursor is on the Limit matches drop-down to see if it appears.

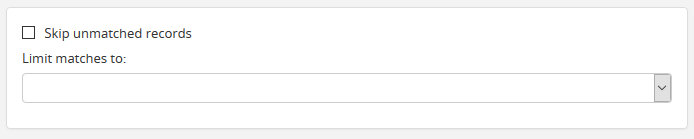

The Skip and Limit options on the CSV import page
  1. If you do not want your files indexed during the import, you can click the checkbox labelled “Do not index imported items.” This will prevent the new records from automatically being added to AtoM’s search index.

Warning

If you do not index your records during import, they will not be discoverable via search or browse in the user interface! You will need to know the exact URL to reach them. To make them visible in the interface again, a system administrator will need to rebuild the search index. See: Populate search index.

  1. When you have configured your import options, click the “Browse” button to open a window on your local computer. Select the CSV file that you would like to import as your update.
Clicking the "Browse" button in the CSV import page
  1. When you have selected the file from your device, its name will appear next to the “Browse” button. Click the “Import” button located in the button block to begin your import.
Starting a CSV import update in AtoM

Note

Depending on the size of your CSV import, this can take some time to complete. Be patient! Remember, you can always check on the status of an import by reviewing the Job details page of the related import job - see: Manage jobs for more information.

  1. After your import is complete, AtoM will indicate that the import has been initiated. A notification at the top of the page will also provide you with a link to the Job details page of the related import job. Alternatively, you can click the “Back” button in the button block at the bottom of the page to return to the CSV import page, or navigate elsewhere in the application.
When a CSV import has been initiated in AtoM
  1. If any warnings or errors are encountered, AtoM will display them on Job details page of the related import job. Generally, errors will cause an import to fail, while warnings will be logged but will allow the import to proceed anyway - however, an administrator can configure the CSV import validation to run automatically on all imports, and when this setting is set to “strict” even warnings will prevent a CSV import from proceeding. For more information, see:

    Errors and warnings can occur for many reasons - please review the checklist above for suggestions on resolving the most common reasons that CSV imports fail. Note that validation can also be run independently of an import - doing so via the user interface will also generate a downloadable TXT file report with further details on errors and warnings encountered, that should help you troubleshoot any issues. See the CSV Validation documentation for further details.

Back to top

Prepare authority record relationships for CSV import

The authority record relationships import tool allows you to import information that links people, families, and organizations. For more information on how to use this functionality in the user interface, see: Create a relationship between two authority records.

You can view the example CSV files for authority record relationships in the AtoM code at lib/task/import/example/authority_records/ or they can be downloaded directly here:

The Relationships CSV template can only be used to link existing authority records that are already present in the AtoM database. AtoM won’t create new authority records when it encounters unknown names in the Relationship CSV file. Therefore, Create a new authority record first if you are planning to import relationships for new people, families, or organizations.

See also

The Relationships CSV file contains 8 columns:

  • The subjectAuthorizedFormOfName is used to specify one of the actors included in the Authority record CSV upload. This field should match exactly one the “Authorized Form Of Name” field values in AtoM’s existing authority records.

  • The objectAuthorizedFormOfName is used to specify the actor with which you intend to create a new relationship. This field should also match one the “Authorized Form Of Name” field values in AtoM’s existing authority records.

  • The relationType column contains data about the type of relationship you are creating, and maps to ISAAR 5.3.2 Category of Relationship. The terms recommended in the ISAAR standard are used as defaults in the Actor Relation Type taxonomy in AtoM. For more information on the distinction between these terms, please consult the International Council on Archives’ ISAAR-CPF standard - specifically, section 5.3.2..

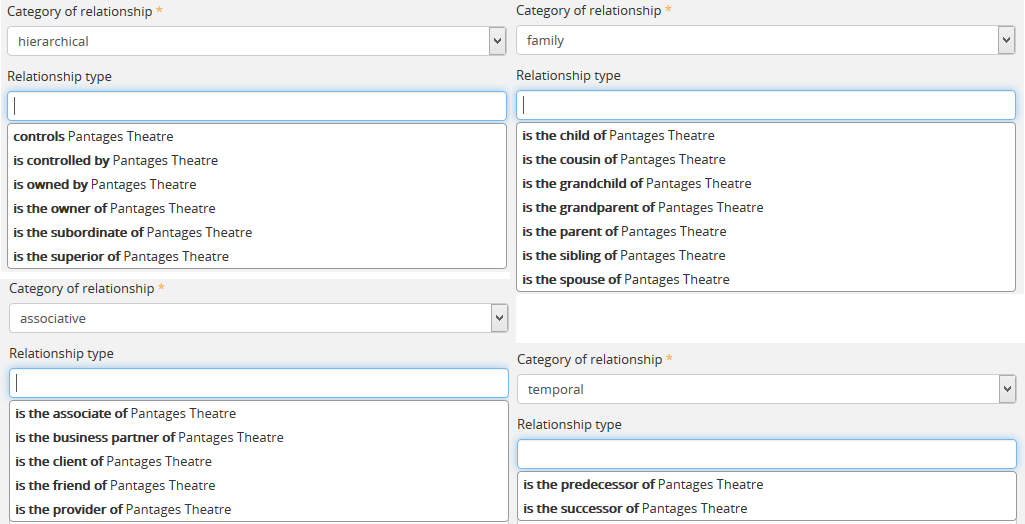

    An image of the Relationship type default terms

    These terms can be edited and managed in the Actor Relation Type taxonomy. Users can also add their own custom relationship types, e.g. “has students”, “is a student of”. For more information on managing and creating terms, see: Terms; see specifically Add/edit a converse term.

Note

You cannot add new relationTypes using the CSV template. If AtoM encounters a relationType in the CSV template that does not already exist in its database, it will output “Unknown relationship type … skipping row” in its import job report.

Important

When a relationType is added on CSV import, AtoM will automatically update the converse term, so only enter one row for each relationship. For example, if subjectAuthorizedFormOfName is “Alice”, relationType is “is the parent of”, and objectAuthorizedFormOfName is “Bob”. Then upon import the Bob authority record will also be updated with an “is a child of” “Alice” relationship.

  • The description field is a free-text string field that allows a user to provide further contextual information about the relationship.
  • The date field is a free-text string field that will allow a user to enter a date or date range for the relationship. It allows the use of special characters and typographical marks to indicate approximation (e.g. [ca. 1900]) and/or uncertainty (e.g. [199-?]). Use the startDate and endDate fields to enter ISO-formatted date values (e.g. YYYY-MM-DD, YYYY-MM, or YYYY) that correspond to the free-text date field. Public users in the interface will see the date field values when viewing relationships; the startDate and endDate values are not visible, and are used for date range searching in the application.
  • The culture column indicates to AtoM the language of the records being uploaded. This column expects two-letter ISO 639-1 language code values - for example, “en” for English; “fr” for French, “it” for Italian, etc. See Wikipedia for a full list of ISO 639-1 language codes, and see the following link for a full list of AtoM supported languages and corresponding culture codes: https://bit.ly/AtoM-langs

See also

Import new authority record relationships via CSV

Important

Before proceeding, make sure that you have reviewed the “Before you import” instructions above, to ensure that your CSV import will work. Most importantly, make sure:

  • Your CSV file is saved with UTF-8 characther encoding
  • Your CSV file uses Linux/Unix style end-of-line characters (/n)
  • AtoM already contains the authority records you intend to establish a relationship between and your CSV file matches their “Authorized Form Of Name” values exactly.
  • You’ve reviewed the instructions in the section above on preparing your CSV file and have made sure it conforms to the recommendations. See: Prepare authority record relationships for CSV import.

AtoM also supports a CSV validation task that can be run from the command-line or the user interface, that can help identify common errors in CSVs prior to import. For more information, see:

To import authority records via the user interface:

  1. Click on the import Import menu, located in the AtoM header bar, and select “CSV”.
The import menu
  1. AtoM will redirect you to the CSV import page. Make sure that the “Type” drop-down menu is set to “Authority record relationships”.

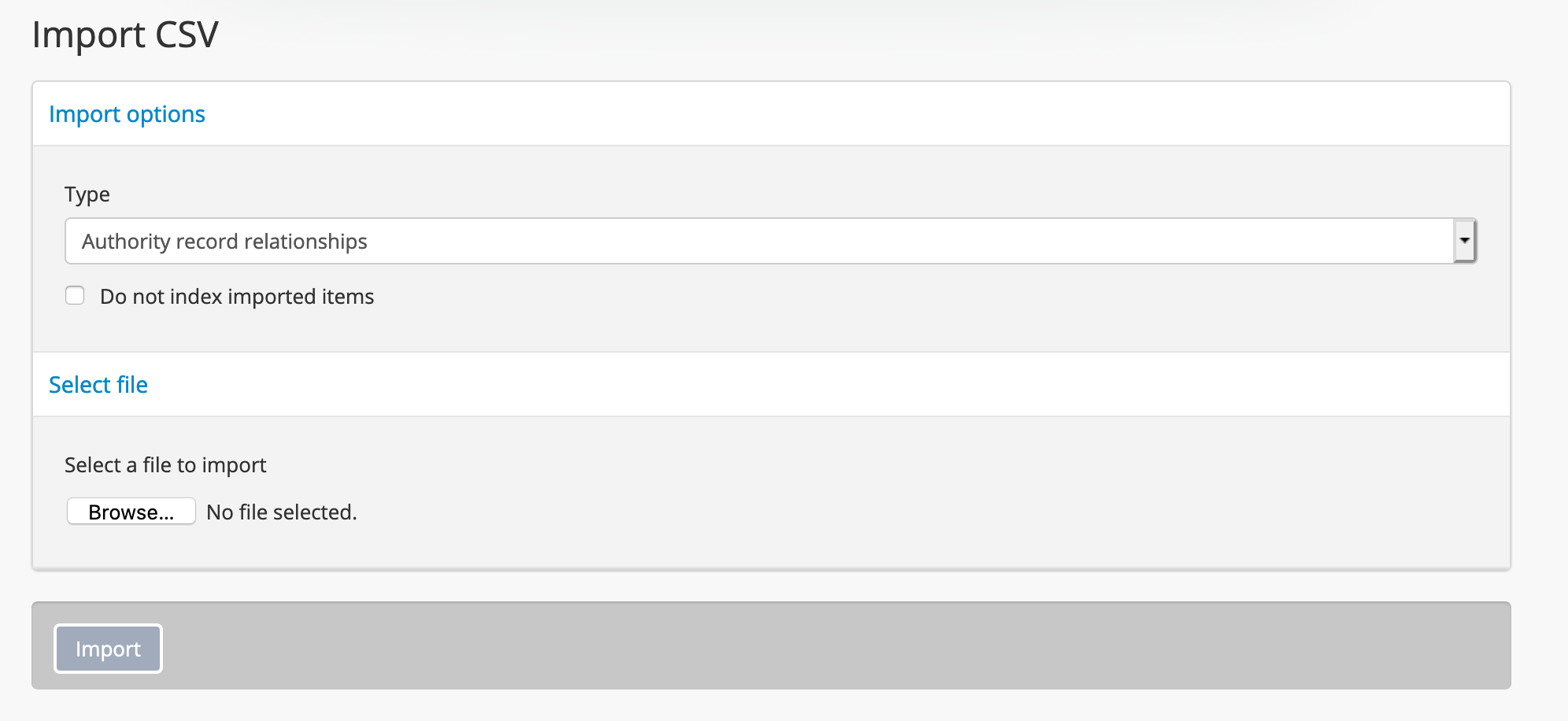

The CSV import page in AtoM, set to import new Authority records relationships
  1. If you do not want your files indexed during the import, you can click the checkbox labelled “Do not index imported items.” This will prevent the new records from automatically being added to AtoM’s search index.

Warning

If you do not index your records during import, they will not be discoverable via search in the user interface! To make them visible in the interface again, a system administrator will need to rebuild the search index. See: Populate search index.

  1. Click the “Browse” button to open a window on your local computer. Select the Authority record relationship CSV file that you would like to import.
Clicking the "Browse" button in the CSV import page
  1. When you have selected the file from your device, its name will appear next to the “Browse” button. Click the “Import” button located in the button block to begin your import.
The import button on the CSV import page

Note

Depending on the size of your CSV import, this can take some time to complete. Be patient! Remember, you can always check on the status of an import by reviewing the Job details page of the related import job - see: Manage jobs for more information.

  1. After your import is complete, AtoM will indicate that the import has been initiated. A notification at the top of the page will also provide you with a link to the Job details page of the related import job. Alternatively, you can click the “Back” button in the button block at the bottom of the page to return to the CSV import page, or navigate elsewhere in the application.
When a CSV import has been initiated in AtoM

See also

If you want to update existing relationship records or delete and replace them, then an AtoM system administrator can do so using the CLI CSV import tool. See: Import authority record relationships.

  1. If any warnings or errors are encountered, AtoM will display them on Job details page of the related import job. Generally, errors will cause an import to fail, while warnings will be logged but will allow the import to proceed anyway - however, an administrator can configure the CSV import validation to run automatically on all imports, and when this setting is set to “strict” even warnings will prevent a CSV import from proceeding. For more information, see:

    Errors and warnings can occur for many reasons - please review the checklist above for suggestions on resolving the most common reasons that CSV imports fail. Note that validation can also be run independently of an import - doing so via the user interface will also generate a downloadable TXT file report with further details on errors and warnings encountered, that should help you troubleshoot any issues. See the CSV Validation documentation for further details.

Back to top

Prepare accession records for CSV import

The accession record import tool allows you to import data about your accessions. Additionally, when importing descriptions as well, you can use the subsequent archival description CSV import to create a link between your accession records and your descriptions, by adding an accessionNumber column in the archival description CSV and populating it with the exact accession number(s) used during your accessions data import.

Alternatively, you can use the qubitParentSlug column to link an existing description in AtoM to new or updated accessions records via your import - more details below.

An example CSV template file is available in the lib/task/import/example/example_accessions.csv directory of AtoM, or it can be downloaded here:

Below you’ll find brief data entry guidelines for preparing a CSV file of accessions data for import.

Jump to:

Linking an imported accession to an archival description

To link incoming accession records to an existing archival description, you can add a column named qubitParentSlug. This column will behave similarly to the qubitParentSlug column in the archival description CSV templates (described above). To link an accession row in your CSV to an existing description in your AtoM instance, simply enter the slug of the target description in the qubitParentSlug column. AtoM will locate the matching description and link the two during import, similar to how an accession created through the user interface can be linked to a description (see: Link an accession record to an archival description).

Important

While the user interface will allow an accession record to be linked to many archival descriptions, at this time the qubitParentSlug column in the CSV import template for accessions cannot support multiple values - attempting to use a pipe separator to add multiple description slugs will cause the import to fail. You can add only one related archival description slug to each row in the qubitParentSlug column - if you need to link your accession record to multiple descriptions, we recommend doing this manually via the user interface after the import has completed.

Standards related fields

Most fields in the CSV template have been named in a fairly obvious way, translating a simplified version of the field name in the AtoM user interface into a condensed camelCase in our data entry. For example, the “Immediate source of acquisition” field in the user interface is represented in the CSV template as the sourceOfAcquisition column.

Some fields are linked to a taxonomy of controlled values in AtoM, maintained as terms. These are generally represented in the accession record edit page in the user interface as a drop-down menu providing a limited list of options for a user to select. To learn more about managing taxonomies and terms, see: Terms. Some of the taxonomy-related fields in the CSV template include:

  • acquisitionType - listed in the user inteface as “Acquisition type.” Default values are: Deposit, Gift, Purchase, Transfer.
  • resourceType - listed in the user interface as “Resource type.” Default values are: Public transfer, Private transfer.
  • processingStatus - listed in the user interface as “Processing status.” Default values are: Complete, Incomplete, In-Progress.
  • processingPriority - listed in the user interface as “Processing priority.” Default values are: High, Medium, Low.

The culture column indicates to AtoM the language of the records being uploaded. This column expects two-letter ISO 639-1 language code values - for example, “en” for English; “fr” for French, “it” for Italian, etc. See Wikipedia for a full list of ISO 639-1 language codes, and see the following link for a full list of AtoM supported languages and corresponding culture codes:

See also

Physical object-related import columns

The physicalObjectName, physicalObjectLocation, and physicalObjectType columns are related to the creation of physical storage containers and locations related to an accession record.

example CSV physicalObject rows

For more information on working with physical storage in AtoM, see: Physical storage.

These fields will also support | pipe separators to add multiple physical storage containers per row. When piping one column, each related column must also be piped correspondingly:

example CSV physicalObject rows

Important

If your CSV import contains physical storage information, the CSV file must contain information in both of the folllowing physical object storage fields: physicalObjectName and physicalObjectLocation. Entering information in physicalObjectName only will result in the creation of duplicates, since AtoM defaults to duplicates rather than accidentally merging separate records with the same location. For example, several collections may contain physicalObjectName Box 1, but adding physicalObjectLocation Shelf 1 will differentiate it from Box 1 on Shelf 5.

Creator-related import columns (actors and events)

The creators column can be used to add the name(s) of the creator of the accession materials. For now, only creation events are supported, so the the eventTypes value should always be Creation. eventDates, eventStartDates, and eventEndDates columns can be used similarly to those in the archival description CSV templates - The eventDates field will map to the free-text display date field in AtoM, where users can use special characters to express approximation, uncertainty, etc. (e.g. [190-?]; [ca. 1885]), while eventStartDates and eventEndDates should include ISO 8601 formatted date values (YYYY-MM-DD, YYYY-MM, or YYYY). If there are multiple creators/events associated with the accession, these fields can all accept multiple values, separated using the pipe | character.

An example of pipe-separated values in the event/creation columns

Important

When using pipe-separated values to add multiple creators/events, values will be matched 1:1 across all related rows (creators, eventTypes, eventDates, eventStartDates and eventEndDates). This means that even if you wish to leave the values for one creator blank (say the end date for creator 1 of 2), you must still pipe the field when adding the second creator’s endDate values, or else they will be matched up with creator 1!

Other accession CSV data entry notes

The acquisitionDate column expects date strings to be formatted according to the ISO 8601 date format standard - that is, YYYY-MM-DD. ISO 8601 prescribes, as a minimum, a four-digit year [YYYY]. If the date range is not formatted according to ISO 8601 formatting, then AtoM will use the PHP date_parse function (which adds ‘1’ as default value to the month and day if they are missing) to modify the date to a YYYY-MM-DD format.

Back to top

Create new accession records via CSV import

Important

Before proceeding, make sure that you have reviewed the “Before you import” instructions above, to ensure that your CSV import will work. Most importantly, make sure your:

  • CSV file is saved with UTF-8 character encoding
  • CSV file uses Linux/Unix style end-of-line characters (/n)
  • You have prepared your CSV data in accordance with the accession CSV guidance provided above - Prepare accession records for CSV import.

AtoM also supports a CSV validation task that can be run from the command-line or the user interface, that can help identify common errors in CSVs prior to import. For more information, see:

To import an accessions CSV file via the user interface:

  1. Click on the import Import menu, located in the AtoM header bar, and select “CSV”.
The import menu
  1. AtoM will redirect you to the CSV import page. Make sure that the “Type” drop-down menu is set to “Accession”.

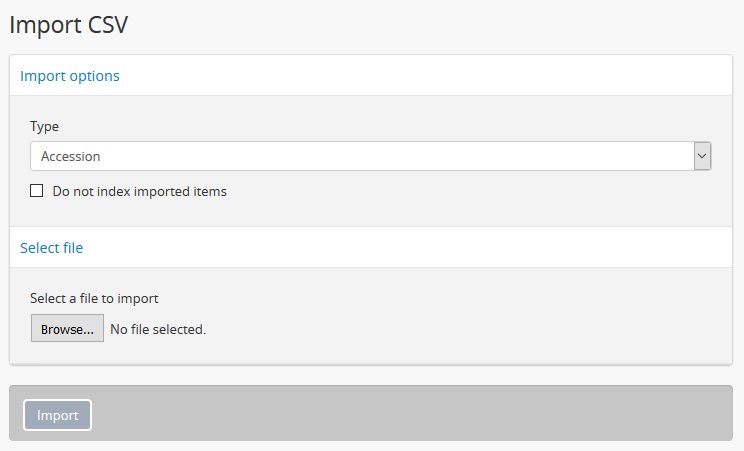

The CSV import page in AtoM
  1. If you do not want your files indexed during the import, you can click the checkbox labelled “Do not index imported items.” This will prevent the new records from automatically being added to AtoM’s search index.

Warning

If you do not index your records during import, they will not be discoverable via search or browse in the user interface! You will need to know the exact URL to reach them. To make them visible in the interface again, a system administrator will need to rebuild the search index. See: Populate search index.

  1. When you have configured your import options, click the “Browse” button to open a window on your local computer. Select the CSV file that you would like to import as your update.
Clicking the "Browse" button in the CSV import page
  1. When you have selected the file from your device, its name will appear next to the “Browse” button. Click the “Import” button located in the button block to begin your import.
Starting a CSV import update in AtoM

Note

Depending on the size of your CSV import, this can take some time to complete. Be patient! Remember, you can always check on the status of an import by reviewing the Job details page of the related import job - see: Manage jobs for more information.

  1. After your import is complete, AtoM will indicate that the import has been initiated. A notification at the top of the page will also provide you with a link to the Job details page of the related import job. Alternatively, you can click the “Back” button in the button block at the bottom of the page to return to the CSV import page, or navigate elsewhere in the application.
When a CSV import has been initiated in AtoM
  1. If any warnings or errors are encountered, AtoM will display them on Job details page of the related import job. Generally, errors will cause an import to fail, while warnings will be logged but will allow the import to proceed anyway - however, an administrator can configure the CSV import validation to run automatically on all imports, and when this setting is set to “strict” even warnings will prevent a CSV import from proceeding. For more information, see:

    Errors and warnings can occur for many reasons - please review the checklist above for suggestions on resolving the most common reasons that CSV imports fail. Note that validation can also be run independently of an import - doing so via the user interface will also generate a downloadable TXT file report with further details on errors and warnings encountered, that should help you troubleshoot any issues. See the CSV Validation documentation for further details.

Back to top

Update existing accessions via CSV import

If a CSV of accession record metadata is imported that contains rows with the exact same accession number as an existing accesion, it’s possible to update the existing accession record with the incoming row. Matching takes place exclusively against the accession number, meaning:

  • It’s not possible to update the accession number of an existing accession record via CSV import
  • Any deviation from the original accession number will result in a new accession record being created.

A CSV import can contain a mix of new accession records and rows that are intended to update existing accession records.

Fields that will support update imports

Currently not all fields in AtoM’s accession record metadata templates can be updated via import. Only those fields that are found in AtoM’s primary accession and accession_i18n database tables will support updates in place. Below is a list of supported fields:

  • title
  • acquisitionDate
  • sourceOfAcquisition
  • locationInformation
  • acquisitionType
  • resourceType
  • title
  • archivalHistory
  • scopeAndContent
  • appraisal
  • physicalCondition
  • receivedExtentUnits
  • processingStatus
  • processingPriority
  • processingNotes

There are also additional fields that are not stored in AtoM’s primary accesion record database tables that can potentially receive new data via an update import. In these cases, existing data will not be replaced - instead, the update import will append new data to the existing resources. These fields typically include related entities such as donors, creators and event dates, physical storage, as well as alternative identifiers.

Below is a list of fields to which new data can be appended via an update import - any existing data will be left in place:

  • alternativeIdentifiers
  • alternativeIdentifierTypes
  • alternativeIdentifierNotes
  • physicalObjectName
  • physicalObjectLocation
  • physicalObjectType
  • donorName
  • donorStreetAddress
  • donorCity
  • donorRegion
  • donorCountry
  • donorPostalCode
  • donorTelephone
  • donorFax
  • donorEmail
  • donorNote
  • donorContactPerson
  • creators
  • eventTypes
  • eventDates
  • eventStartDates
  • eventEndDates

The process for importing updates is identical to importing a CSV of new accession record metadata - see above for step-by-step instructions on how to import an accession record CSV in AtoM.

Back to top

Version 2.7

Conteúdos
