Command line tools

There are a number of command line tools that can help you troubleshoot various AtoM problems.

See below for Common AtoM database queries.

Find out what version of AtoM you’re running

You can always find out what version of AtoM you have installed via the user interface by navigating to Admin > Settings > Global - the application version is the first thing listed on the Settings page. See: Application version for more information.

However, if you’d like to check the application version from the command-line, you can run the following command from AtoM’s root folder:

php symfony tools:get-version

Add a SuperUser (Admin) account

You can create a new administrator account from the command-line using the following command:

php symfony tools:add-superuser --email="youremail@example.com" --password="MYSUPERPASSWORD" <username>

The username should not have any spaces in it.

If you’d like to quickly create a user for demonstration, diagnostic purposes, you can use the following command:

php symfony tools:add-superuser –demo

This will create a superuser with username “demo”, email “demo@example.com”, and password “demo”.

Promote a user to an administrator

If you’d like to promote a user account in AtoM to have full administrator access privileges via the command-line, you can use the following task. You will need to know the user name of the account.

php symfony tools:promote-user-to-admin <username>

If the user doesn’t exist you’ll see the following error:

Unknown user.

If the user is already an administrator:

The given user is already an administrator.

If the operation succeeds:

The user <username> is now an administrator.

See also

For more information on user permissions, user roles, and how to manage them, see:

Change a password

If you need to change the password on a user account in AtoM, you can do so via the command-line.

php symfony tools:reset-password [--activate] username [password]

The username is a required value, while the password is optional - if no password is entered, AtoM will generate an 8-character temporary password to be used for the user account. AtoM will return the new password in the command-line.

Warning

We strongly recommend that these auto-generated passwords ONLY be used temporarily! They are not strong passwords - users should generate longer passwords that include special characters. For more information, see:

If the user account is currently marked inactive in the system (see Mark a user “Inactive” for more information), you can also use the option --activate to mark that account as active again.

See also

You can also manage user passwords through the user interface. For more information, see:

Regenerating derivatives

If you are upgrading to AtoM 2 from ICA-AtoM, the digital object derivatives (i.e. the reference display copy and the thumbnail generated by AtoM when a master digital object is uploaded) are set to be a different default size (i.e. they are larger in AtoM) - consequently, after an upgrade, derivatives from ICA-AtoM may appear blurry or pixellated. Alternatively, if you have changed the Digital object derivatives settings, you might want to regenerate your derivatives so that the new setting is used for multi-page content such as PDF derivatives.

As well, sometimes the digitalobject:load task used for importing digital objects to existing descriptions (see: Load digital objects via the command line) won’t generate the thumbnail and reference images properly for digital objects that were loaded (e.g. due to a crash or absence of convert installed, etc. - see under requirements, Other dependencies (not required; recommended)). In this case, you can regenerate these thumbsnail/reference images using the following command:

php symfony digitalobject:regen-derivatives

By typing php symfony help digitalobject:regen-derivatives into the command-line, you can see the options available for this task:

An image of the options available in the regen-derivatives command

The --application, --env, and connection options should not be used - AtoM requires the uses of the pre-set defaults for symfony to be able to execute the import.

The --index option is used to enable the rebuilding of the search index as part of the regeneration task. When running this task via the command-line interface, indexing is disabled by default to allow the task to progress more quickly - generally, we recommend manually clearing the cache and rebuilding the search index following the use of this task - to do so, from AtoM’s root directory, run:

php symfony cc && php symfony search:populate

However, if you would like to re-index as the derivative regeneration progresses, the --index option can be used to enable this.

The --slug option can be used to target specific derivatives associated with a description, using the description’s slug as criteria. Any digital object attached or linked to the description whose slug is provided as criteria will have its derivatives regenerated. Example use:

php symfony digitalobject:regen-derivatives --slug="the-jane-doe-fonds"

The --force or -f option can be used to skip the warning normally delivered by the task when the command is entered. Because the task will delete ALL previous derivatives - including those manually altered by editing the thumbnail or reference display copy of a digital object via the user interface (see: Edit digital objects for more information) - the task will normally ask for confirmation when invoked:

An image of the CLI warning when invoking the regen-derivatives command

However, experienced developers and system administrators can skip having to manually confirm the procedure by using the --force (or -f for short) option as part of the command.

The --only-externals (or -o for short) option can be used if you would only like to attempt to regenerate the local derivatives for linked digital objects - that is, those that have been linked via an external URI, rather than by uploading a master digital object. For more information on linking digital objects, see: Link a single digital object to an archival description.

The --skip-to option is useful when the task is interrupted, such as when an error is encountered mid-process that ends the task. As the task progresses during normal execution, it will output information about the current digital object filename it is working on. If the task interrupts (for example, trying to fetch a large external digital object, the task might time out), a system administrator can use this option to resume the task where it interrupts. Example:

$ php symfony digitalobject:regen-derivatives

Regenerating derivatives for file1.jpg...
Regenerating derivatives for file2.jpg...
Regenerating derivatives for file3.jpg...

<timeout error occurs>

$ php symfony digitalobject:regen-derivatives --skip-to='file3.jpg'

Regenerating derivatives for file3.jpg...
<task continues where it left off>

The --json or -j option is for advanced users who would like to target only a specific subset of digital objects for regeneration. With this option, a user can supply the path to a JSON file that lists the internal digital_object ID’s associated with the digital objects targeted and stored in AtoM’s database. These digital_object ID’s will first need to be determined by crafting an SQL query designed to meet your specific criteria. Help crafting these queries is not covered here (though you can see below, Common AtoM database queries, for a BASIC introduction to SQL queries in AtoM) - in general, we only recommend this task be used by experienced administators.

Once you have determined the IDs of the digital objects you would like to target with the task, you can place them in square brackets in a JSON file, separated by commas, like so:

[372, 366, 423, 117]

(etc)

The criteria for the --json option then becomes the path to your JSON file:

php symfony digitalobject:regen-derivatives --json="path/to/my.json"

Warning

When running the regen-derivatives task, all of your current derivatives for the targeted digital objects will be deleted - meaning ALL of them if you provide no criteria such as a slug or a JSON file. They will be replaced with new derivatives after the task has finished running. If you have manually changed the thumbnail or reference display copy of a digital object via the user interface (see: Edit digital objects), these two will be replaced with digital object derivatives created from the master digital object.

Re-indexing PDF text

php symfony digitalobject:extract-text

In rare situations you may want to to re-index all PDFs to make their text searchable in AtoM without having to re-import them completely. This task will go through each existing PDF imported into AtoM and re-index their contents for searches.

For linked digital objects (e.g. PDFs that are linked from a publicly accessible URI, instead of uploaded locally - see for example: Link a single digital object to an archival description), this task will re-fetch a version of the external PDF and store it in a temporary file, re-index the contents, and then purge the local master after the indexing is complete.

Tip

An image of the app.yml file in AtoM

Large PDFs may cause 500 errors if you do not first adjust the download timeout limit. You can do this by changing the value in the app.yml file located in /config/app.yml. The default timeout value in AtoM is 10s. You should also clear the cache after making changes to the app.yml file:

php symfony cc

Rebuild the nested set

AtoM generally uses a relational database to store its data (we recommend MySQL). However, relational databases, which are comprised of flat tables, are not particularly suited to handling hierarchical data. As developer Mike Hillyer notes, “Hierarchical data has a parent-child relationship that is not naturally represented in a relational database table.” One method of addressing this is to employ a “Nested set model” (Wikipedia). AtoM makes use of a nested set to manage hierarchical relationships, such as between parent and child terms and descriptions.

Sometimes, during operations that involve updates to large hierarchies, the nested set can become corrupted - especially if the server times out during an operation that reaches the execution limit settings. The following task will rebuild all nested sets in AtoM:

php symfony propel:build-nested-set

Generate slugs

In some cases, AtoM may time out in the middle of an operation that involves the creation of new records - for example, if a user attempts to import a very large CSV file through the user interface (rather than the command-line - see: CSV import). In such cases, it is possible that AtoM has died after creating an information object, but before having a chance to create a slug for the record. This can cause unexpected errors in the application - most notably, 500 errors when trying to access the records missing slugs through the application interface.

If you want to generate slugs for records in AtoM without them, you can use the following command:

php symfony propel:generate-slugs

This task will work for the following entities:

  • information objects (e.g. archival descriptions)
  • actors (e.g. authority records)
  • terms
  • physical objects (e.g. storage locations, etc)
  • events (e.g. creation events, etc - usually the relationship between actors and information objects)
  • accessions

If an error has left other areas in AtoM without slugs (for example, a user account’s view page, a donor record, etc), this task will not resolve the issue - you will likely have to manually insert a slug into the database for that entity.

For information objects, the generate slugs task will respect the global settings for the source from which description permalinks are created. These settings can be controlled by an administrator via the user interface - for more information, see: Generate description permalinks from.

Note that by default, existing slugs will not be replaced. If you want to generate new slugs for existing objects, you will need to first delete the existing slugs from the database. This can be useful for records in which a random slug has been automatically assigned, because the default user data used to generate the slug has not been provided (see below for more information on how slugs are generated in AtoM).

However, if you would like to replace all existing slugs with newly generated slugs, you can use the --delete option, like so:

php symfony propel:generate-slugs --delete

Important

This will replace all custom slugs you may have created with the Rename module! For more information on the Rename module, see: Rename the title or slug of an archival description

Slugs can also be manually deleted via SQL queries. For further information on deleting slugs from AtoM’s database via SQL, see below in the section on Common AtoM database queries - particularly, Delete slugs from AtoM.

Notes on slugs in AtoM

A slug is a word or sequence of words which make up the last part of a URL in AtoM. It is the part of the URL that uniquely identifies the resource and often is indicative of the name or title of the page (e.g.: in www.yourwebpage.com/about, the slug is about). The slug is meant to provide a unique, human-readable, permanent link to a resource.

In AtoM, all pages based on user data (such as archival descriptions, archival institutions, authority records, terms, etc.) are automatically assigned a slug based on the information entered into the resource:

Entity type Slug derived from
Archival description Title or Reference code
Authority record Authorized form of name
Accession Identifier (accession number)
Other entities Name

Generated slugs will only allow digits, letters, and dashes. English articles (such as “the,” “a,” “an,” etc) are removed, and any other sequences of unaccepted characters (e.g. accented or special characters, etc.) are replaced with dashes. This conforms to general practice around slug creation - for example, it is “common practice to make the slug all lowercase, accented characters are usually replaced by letters from the English alphabet, punctuation marks are generally removed, and long page titles should also be truncated to keep the final URL to a reasonable length” (Wikipedia). In AtoM, slugs are truncated to a maximum of 250 characters.

If a slug is already in use, AtoM will append a dash and an incremental number (a numeric suffix) to the new slug - for example, if the slug “correspondence” is already in use, the next record with a title of “Correspondence” will receive the slug “correspondence-2”.

If a record is created without data in the field from which the slug is normally derived (e.g. an archival description created without a title), AtoM will assign it a randomly generated alpha-numeric slug. Once assigned, slugs cannot be changed through the user interface - either the record must be deleted and a new record created, or you must manipulate the database directly.

Finally, static pages, or permanent links, include a slug field option, but only slugs for new static pages can be edited by users; the slugs for the default Home page and About page in AtoM cannot be edited. New static page slugs can either be customized by users or automatically generated by AtoM if the field is left blank; AtoM will automatically generate a slug that is based on the “Title” you have indicated for the new static page. For more information on static pages in AtoM, see: Manage static pages.

Note

Slugs such as “search” and “browse” are reserved for use in AtoM by the Search and Browse modules - if you create a static page, or even a description, with the slug “search”, it may interfere with your search results, redirecting to this new page instead of display your results! A simple workaround would be to iterate the slug (e.g. “search-1”) or alter it in some meaningful way (e.g. for a static page with tips on searching, changing the slug to “search-help”).

Tip

For developers interested in seeing the code where slugs are handled in AtoM, see /lib/model/QubitSlug.php

Taxonomy normalization

A command-line tool will run through taxonomy terms, consolidating duplicate terms. If you’ve got two terms named “Vancouver” in the “Places” taxonomy, for example, it will update term references to point to one of the terms and will delete the others.

php symfony taxonomy:normalize [--culture=<culture>] <taxonomy name>

Task options

An image of the CLI options when invoking the taxonomy:normalize command

By entering php symfony help taxonomy:normalize into the command-line, you see the options and descriptions available on this tool, as pictured above.

The --application, --env, and connection options should not be used - AtoM requires the uses of the pre-set defaults for symfony to be able to execute the import.

The --culture option on this command-line tool is optional - the default value, if none is entered is en (English). The value you enter for <culture> should be the default culture of the terms you wish to normalize - in most cases this will be the default culture you set up when installing AtoM (though depending on your imports and multi-lingual use of the application, this may not always be true) The value, if needed, should be entered using two-letter ISO 639-1 language code values - for example, “en” for English; “fr” for French, “it” for Italian, etc. See Wikipedia for a full list of ISO 639-1 language codes.

The taxonomy name value should be entered as it is seen in the user interface in Manage > Taxonomies. This value is case sensitive. If the taxonomy name has spaces (i.e. if it is more than one word), you will want to use quotation marks.

Below is an example of running this command on French terms in the Physical object type taxonomy:

php symfony taxonomy:normalize --culture="fr" "Physical object type"

You might also run this command on English terms in the Places taxonomy like so:

php symfony taxonomy:normalize Places

Update the publication status of descriptions

In AtoM, an archival description can have publication status of either “Draft” or “Published”. The publication status of a record, which can be set to either draft or published, determines whether or not the associated description is visible to unauthenticated (i.e., not logged in) users, such as researchers. It can be changed via the user interface in the administration area of a description’s edit page by a user with edit permissions. See Publish an archival description for instructions on changing this via the user interface.

If you would like to change the publication status of a record via the command-line, you can use the following command-line tool, run from the root directory of AtoM. You will need to know the slug of the description whose publication status you wish to update.

You can also update the publication status of all descriptions associated with an archival institution by using the --repo option and providing a repository slug instead - details are included below. Here is the basic syntax of the command with all options shown:

php symfony tools:update-publication-status [--application[="..."]] [--env="..."] [--connection="..."] [-f|--force] [-i|--ignore-descendants] [-y|--no-confirm] [-r|--repo] publicationStatus slug

Notes on use

AtoM requires two parameters to be able to execute the task: the publication status you wish to use, and the slug of a resource on which to perform the task. For the publication status, you can use any term you have added to the Publication status taxonomy in AtoM - the default terms are Draft, and Published. You cannot create a new publication status term by using this task - the term must already exist in AtoM, or the task will fail.

Example use (no options) - update a description with a slug of example-description to published:

php symfony tools:update-publication-status published example-description

Task options:

The CLI options when invoking the publication status command

By entering php symfony help tools:update-publication-status into the command-line, you see the options available on this tool, as pictured above.

The --application, --env, and connection options should not be used - AtoM requires the uses of the pre-set defaults for symfony to be able to execute the task.

In general and as in the user interface, if a parent description is updated, it will also update the publication status of its children. In some rare cases however, there may be legacy records in the system with a publication status of NULL. The command-line option --force, or -f for short, will force the update of the target information object and all of its children, including legacy records that might have a publication status of NULL. We recommend using this option any time you want a publication status update to affect children as well.

The --ignore-descendents, or -i, option can be used to leave the publication status of all children unchanged. This is useful if you have a mixture of publication statuses at lower levels - some draft, and some published.

Normally when the command is run, AtoM will ask for a y/N confirmation before proceeding. The --no-confirm or -y option was introduced so that developers who are interested in using this task in a larger scripted action can override the confirmation step.

If the --repo or -r option is used, AtoM will update the publication status for ALL descriptions belonging to the associated repository (i.e. archival institution). To use this option, you must supply the slug of the repository.

Example use - updating all the descriptions associated with “My archival institution” (slug = my-archival-institution) to published.

php symfony tools:update-publication-status --repo published my-archival-institution

As the task proceeds, it will print a . period in the command-line for each record that is updated, providing a visual indication of progress.

The CLI output when updating all descriptions associated with a repository

Warning

This task is NOT designed for scalability. If you are planning on updating the publication status of thousands of records, we recommend using SQL to do so instead. We have included instructions on how to do so below - see:

Back to top

Delete a description

You can delete a description from the command-line if you know the description’s slug. A slug is a word or sequence of words which make up a part of a URL that identifies a page in AtoM. It is the part of the URL located at the end of the URL path and often is indicative of the name or title of the page (e.g.: in www.youratom.com/this-description, the slug is this-description). When a new information object is created in AtoM, the slug for that page is generated based on the title, with spaces, stopwords, and special characters stripped out.

If you know the slug of a description you’d like to delete, use the following command to delete it from the command-line:

php symfony tools:delete-description <slug>

AtoM will ask you for confirmation before you proceed giving you a count of descriptions affected (e.g. the target description and its descendants):

The CLI warning when deleting a description

Tip

If you would like to proceed without having to confirm your actions, you can use the --no-confirmation option - or its shorthand, -B, like so:

php symfony tools:delete-description -B <slug>

Back to top

Delete all draft descriptions

If you want to remove all draft information object (e.g. archival description) records from AtoM, you can use the following command-line tool to delete all records with a publication status of “Draft”:

php symfony tools:delete-drafts

The task will ask you to confirm the operation:

>> delete-drafts Deleting all information objects marked as draft...
Are you SURE you want to do this (y/n)?

Enter “y” if you are certain you would like to delete all draft records.

Remove HTML content from archival description fields

As of the 2.2 release, HTML added to atom’s descriptive templates will be automatically escaped for security purposes. This means that if you were previously using HTML to style content added to an edit template, it may no longer display correctly:

An image of how escaped HTML content will appear when saved in AtoM

To assist legacy users who have added HTML to archival descriptions, a command-line task to strip the HTML from descriptions has been added. At present, it will only remove HTML from archival descriptions - other entity types (such as archival institution records, accessions, authority records, etc) will not be affected.

Important

There are also some fields in the information object (e.g. archival description) that do not currently support this task - meaning HTML will not be removed from these fields by running this CLI task:

  • RAD title note (e.g. Source of title proper, Attributions and conjectures, etc)
  • General notes fields in any template
  • RAD Other notes and DACS Specialized notes (e.g. Variant title information, citation, or record-keeping activity notes in DACS; Accompanying material, cast, editions, or physical description notes in RAD)

To run the HTML scrub task:

From the root directory of your AtoM installation, run the following command:

php symfony i18n:remove-html-tags

The command-line interface will output information on how many fields within each information object were scrubbed, as well as a summary when the task terminates:

An image of the command-line output after executing the remove html tags task

The task will have the following effects on HTML elements:

  • Links, including email mailto: links, will be replaced with AtoM’s custom formatting for links - for more information, see: Add custom hyperlinks to text fields. This means that after being run, links will now appear in AtoM’s view pages as they were intended to when the HTML was added.
  • Styling elements, such as <em>, <b>, <strong>, <i>, etc. will be removed with no substitutions (the text they wrap will be preserved).
  • List elements (<li>) will be replaced with an asterix and a space - AtoM’s edit templates already include a helper that will transform asterixes used this way into bullets. So, <ul><li>This item</li></ul> will become * This item
  • Definition list elements such as <dd>, <dt>, etc (which were briefly used in earlier versions of AtoM to structure physical description EAD import data) will be removed (the text they wrap will be preserved).
  • Paragraph tags (<p>) will be removed, and substituted with 2 line breaks to preserve spacing (i.e. /n/n)
An example of HTML in a form, before and after running the script

Purging all data

If you’re working with an AtoM installation and want to, for whatever reason, purge all data you can do this with a command-line tool:

php symfony tools:purge

Warning

This will delete ALL DATA in your AtoM instance! Be sure this is what you want to do before you proceed. You may want to back up your database first - see below

The tool will prompt you for the title and description of your site as well as for details needed to create a new admin user. If a .gitconfig file is present in your home directory purge will use your name and email, from that file, to provide default values.

If you are a developer or system administrator using this task for testing purposes, there is also a --demo option available:

php symfony tools:purge --demo

Important

Using the --demo option with the purge task will have the following consequences:

  • The task will NOT ask for confirmation before purging all data (the warning is skipped)
  • It will repopulate the database with a default demo user
  • It will add a site title to the installation - “Demo site”.
  • It will NOT clear the application cache. We recommend clearing the cache and restarting all services after running this task - e.g.
php symfony cc
sudo service php5-fpm restart
sudo /etc/init.d/memcached restart

See Manage user accounts and user groups for information on how to edit or delete the demo user account via the user interface. See: Site information for instructions on how to edit the site title via the user interface. See Clear cache for more information on clearing the cache.

Back to top

Backing up the database

See also

Data backup

To back up a MySQL database, use the following command:

mysqldump -u myusername -p mydbname > ./mybackupfile.sql

Be sure to use your username / password / database name. To restore the database as it was during the dump command, you can suck it back in with this command:

mysql -u myusername -p mydbname < ./mybackupfile.sql

The database is now restored to the point when you dumped it.

Bulk import of XML files

While XML files can be imported individually via the user interface (see: Import descriptions and terms), it may be desireable to import multiple XML files, or large files (typically larger than 1 MB) through the command line.

php symfony import:bulk /path/to/my/xmlFolder

Using the import:bulk command

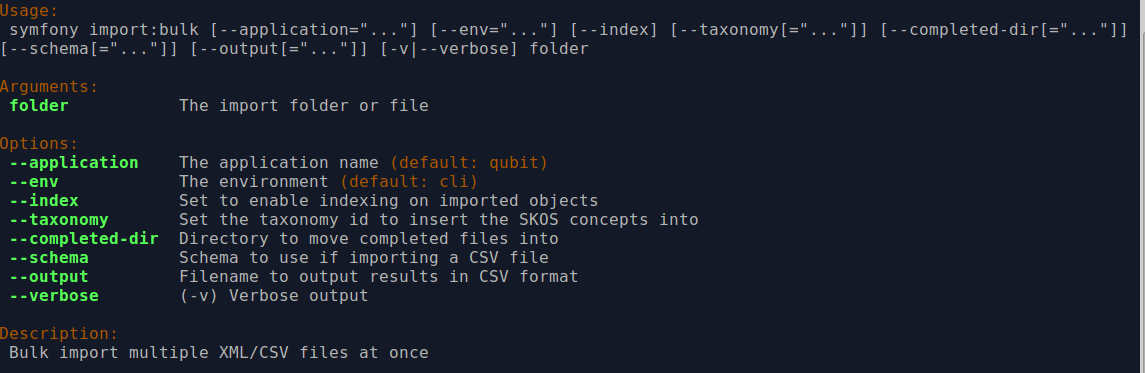

An image of the options available in the import:bulk command

By typing php symfony help import:bulk into the command-line without specifying the path to a directory of XML files, you can see the options available on the import:bulk command, as pictured above.

The --application, --env, and connection options should not be used - AtoM requires the uses of the pre-set defaults for symfony to be able to execute the import.

The --index option is used to enable the rebuilding of the search index as part of the import task. When using the user interface to import XML files, the import is indexed automatically - but when running an import via the command-line interface, indexing is disabled by default. This is because indexing during import can be incredibly slow, and the command-line is generally used for larger imports. Generally, we recommend a user simply clear the cache and rebuild the search index following an import - from AtoM’s root directory, run:

php symfony cc & php symfony search:populate

However, if you would like to index the import as it progresses, the --index option can be used to enable this.

The --taxonomy option is used to assist in the import of SKOS xml files, such as places and subjects, ensuring that the terms are imported to the correct taxonomy. As input, the --taxonomy option takes a taxonomy ID - these are permanent identifiers used internally in AtoM to manage the various taxonomies, which can be found in AtoM in /lib/model/QubitTaxonomy.php (see on GitHub here).

Example use: Importing terms to the Places taxonomy

php symfony import:bulk --taxonomy="42" /path/to/mySKOSfiles

Example use: Importing terms to the Subjects taxonomy

php symfony import:bulk --taxonomy="35" /path/to/mySKOSfiles

Below is a list of some of the more commonly used taxonomies in AtoM, and their IDs. This list is NOT comprehensive - to see the full list, navigate to /lib/model/QubitTaxonomy.php, or visit the Github link above.

Taxonomy name ID
Places 42
Subjects 35
Level of description 34
Actor entity type (ISAAR) 32
Thematic area (repository) 72
Geographic subregion (repository) 73

The --completed-dir option is used to automatically move files (e.g. XML files during an import) into a completed directory after they have imported. This can be useful during troubleshooting, to determine which files have imported and which have failed. The option takes a file path to the chosen directory as its parameter. You must manually create the directory first - the task will not automatically generate one at the specified location. Example use:

php symfony import:bulk --completed-dir="/path/to/my/completed-directory" /path/to/my/importFolder

The --output option will generate a simple CSV file containing details of the import process, including the time elapsed and memory used during each import. To use the option, you mush specify both a path and a filename for the CSV file to output. For example:

php symfony import:bulk --output="/path/to/output-results.csv" /path/to/my/importFolder

The CSV contains 3 columns. The first (titled “File” in the first row) will list the path and filename of each imported file. The second column (titled “Time elapsed (secs)” in the first row) indicates the time elapsed during the import of that XML file, in seconds, while the third column (titled “Memory used”) indicates the memory used during the XML import of that file, in bytes. Also included, at the bottom of the CSV, are two summary rows: Total time elapsed (in seconds), and Peak memory usage (in megabytes).

an example of the CSV output after an import using the output option

The --verbose option will return a more verbose output as each import is completed. Normally, after the import completes, a summary of the number of files imported, the time elapsed, and the memory used:

Successfully imported [x] XML/CSV files in [y] s. [z] bytes used."

… where [x] is the number of files imported, [y] is a count of the time elapsed in seconds, and [z] is the memory used in bytes.

an example of the summary output after an import

If the --verbose command-line option is used (or just -v for short), the task will output summary information for each XML file imported, rather than a total summary. The summary information per file includes file name, time elapsed during import ( in seconds), and its position in the total count of documents to import. For example:

[filename] imported.  [x]s  [y]/[z] total

… where [x] is the time elapsed in seconds, [y] is the current file’s number and [z] is the total number of files to be imported.

an example of the verbose output after an import via the CLI

Bulk export of XML files

While XML files can be exported individually via the user interface (see: Export descriptions and terms), it may be desireable to export multiple XML files, or large files (typically larger than 1 MB) through the command line. This can avoid browser-timeout issues when trying to export large files, and it can be useful for extracting several descriptions at the same time. XML files will be exported to a directory; you must first create the target directory, and then you will specify the path to it when invoking the export command:

php symfony export:bulk /path/to/my/xmlExportFolder

Note

There is also a separate bulk export command for EAC-CPF XML files (e.g. for exporting authority records via the command-line. It uses the same CLI options as the EAD XML export task. See below below for syntax; see the EAD usage guidelines for how to use the available options.

Important

The Inherit reference code (information object) setting also determines how the <unitid> element in the EAD XML is populated. If the inheritance is turned on, then AtoM will populate all descendant records in the EAD XML with the full inherited reference code. If inheritance is turned off, AtoM will only add the identifier for that record in the <unitid> on export. This allows users exporting to a different source system that does not have a reference code inheritance setting to maintain a full reference code at all levels in the target system. However, if you are exporting from one AtoM instance to another (for example, from a local institution to a portal site), you might want to consider how this will impact your record display in the target system - if you have reference code inheritance turned on when you export, and the target AtoM instance also has the setting turned on, you may end up with duplication in the display!

Using the export:bulk command

An image of the options available in the export:bulk command

By typing php symfony help export:bulk into the command-line without specifying the path to the target directory of exported XML files, you can see the options available on the export:bulk command, as pictured above.

The --application, --env, and connection options should not be used - AtoM requires the uses of the pre-set defaults for symfony to be able to execute the import.

The --items-until-update option can be used for a simple visual representation of progress in the command-line. Enter a whole integer, to represent the number of XML files that should be exported before the command-line prints a period (e.g. . ) in the console, as a sort of crude progress bar. For example, entering --items-until-update=5 would mean that the import progresses, another period will be printed every 5 XML exports. This is a simple way to allow the command-line to provide a visual output of progress.

Example use reporting progress every 5 rows:

php symfony export:bulk --items-until-update=5 /path/to/my/exportFolder

This can be useful for large bulk exports, to ensure the export is still progressing, and to try to roughly determine how far the task has progressed and how long it will take to complete.

The --format option will determine whether the target export uses EAD XML, or MODS XML. When not set, the default is to export using EAD. Example use:

php symfony export:bulk --format="mods" /path/to/my/exportFolder

The --criteria option can be added if you would like to use raw SQL to target specific descriptions.

Example 1: exporting all draft descriptions

php symfony export:bulk --criteria="i.id IN (SELECT object_id FROM status WHERE status_id = 159 AND type_id = 158)" /path/to/my/exportFolder

If you wanted to export all published descriptions instead, you could simply change the value of the status_id in the query from 159 (draft) to 160 (published).

Example 2: exporting all descriptions from a specific repository

To export all descriptions associated with a particular archival institution, you simply need to know the slug of the institution’s record in AtoM. In this example, the slug is “example-repo-slug”:

php symfony export:bulk --criteria="i.repository_id = (SELECT object_id FROM slug WHERE slug='example-repo-slug')" /path/to/my/exportFolder

Example 3: exporting specific descriptions by title

To export 3 fonds titled: “779 King Street, Fredericton deeds,” “1991 Canada Winter Games fonds,” and “A history of Kincardine,” You can issue the following command:

sudo php symfony export:bulk --criteria="i18n.title in ('779 King Street, Fredericton deeds', '1991 Canada Winter Games fonds', 'A history of Kincardine')" path/to/my/exportFolder

You could add additional archival descriptions of any level of description into the query by adding a comma then another title in quotes within the ()s.

The --current-level-only option can be used to prevent AtoM from exporting any children associated with the target descriptions. If you are exporting fonds, then only the fonds-level description would be exported, and no lower-level records such as series, sub-series, files, etc. This might be useful for bulk exports when the intent is to submit the exported descriptions to a union catalogue or regional portal that only accepts collection/fonds-level descriptions. If a lower-level description (e.g. a series, file, or item) is the target of the export, it’s parents will not be exported either.

The --single-slug option can be used to to target a single archival unit (e.g. fonds, collection, etc) for export, if you know the slug of the target description.

Example use

php symfony export:bulk --single-slug="test-export" /path/to/my/directory/test-export.xml

Important

For the export task to succeed when using the --single-slug option, you must specify not just a target output directory, but a target output file name. Exporting to path/to/my/directory/ will result in nothing being exported - you will be given a warning that the path should be a file - while exporting to path/to/my/directory/some-filename.xml will succeed. Note that the task cannot create new directories - but you can give the target file any name you wish (ending in .xml); it doesn’t need to be based on the target slug.

An example of using the single-slug option

The --public option is useful for excluding draft records from an export. Normally, all records in a hierarchical tree will be exported regardless of publication status. Note that if a published record is the child of a draft record, it will not be included when this option is used - when the parent is skipped (as a draft record), the children are also skipped, so as not to break the established hierarchy.

Exporting EAC-CPF XML for authority records

In addition to the bulk export CLI tool for archival descriptions described above, AtoM also has a separate command-line task for the bulk export of authority records in EAC-CPF XML format.

The EAC-CPF XML standard is prepared and maintained by the Technical Subcommittee for Encoded Archival Context of the Society of American Archivists and the Staatsbibliothek zu Berlin, and a version of the Tag Library is available at:

When using the task, EAC-CPF XML files will be exported to a directory; you must first create the target directory, and then you will specify the path to it when invoking the export command:

php symfony export:auth-recs /path/to/my/xmlExportFolder

The authority record bulk export task has the same options available as the archival description export task described above. Some of these options will not be relevant to EAC-CPF exports (e.g. the --current-level-only option, as authority records are not hierarchical; and the --public option, as currently authority records do not have a publication status), but otherwise they can be used with this task in the same way as described for the archival description export options above. Please refer there for more detailed usage notes. Below is an example application, using the --criteria option:

Example: using the --criteria option to select only authority records whose entity type is “family”

First, you will need to know the entity type ID for family. Entity type is a term maintained in the Actor entity types taxonomy - when elements from a different table in the database are linked to actors, the term ID is used. Here are the term object IDs for the Actor entity types:

Term Term ID
Corporate body 131
Person 132
Family 133

Tip

An easy way to figure this out in the user interface is to use the related Entity type facet on the authority record browse page, and look at the resulting URL. For example, if we go to the public AtoM demo site, navigate to the Authority record browse page, and use the facet to limit the results to those records with an Entity type of family, the resulting URL is:

See the 133 in the URL? This represents the Entity type we have applied to filter the results!

We can now use the entity type to limit our export to include only those authority records with an entity type of “Family,” like so:

php symfony export:auth-recs --criteria='a.entity_type_id=133' path/to/my/export-folder

Back to the top

Generate an XML sitemap for search engine optimization

This task will allow a system administrator with to generate an XML sitemap of your AtoM instance, to enhance search engine optimization. It uses the sitemap protocol, as described on sitemaps.org. From the site’s home page:

Sitemaps are an easy way for webmasters to inform search engines about pages on their sites that are available for crawling. In its simplest form, a Sitemap is an XML file that lists URLs for a site along with additional metadata about each URL (when it was last updated, how often it usually changes, and how important it is, relative to other URLs in the site) so that search engines can more intelligently crawl the site.

Web crawlers usually discover pages from links within the site and from other sites. Sitemaps supplement this data to allow crawlers that support Sitemaps to pick up all URLs in the Sitemap and learn about those URLs using the associated metadata. Using the Sitemap protocol does not guarantee that web pages are included in search engines, but provides hints for web crawlers to do a better job of crawling your site.

source: http://www.sitemaps.org/

This XML sitemap can then be passed to search index providers such as Google, for better indexing of your AtoM instance. Multiple sitemaps can be generated by the task to account for Google’s limits on size and/or number of nodes. If the sitemap file has more than 50,000 nodes, it will automatically be broken into multiple sitemaps.

More information:

The task will draw the default weighting for each level of description used in archival descriptions from a configuration file found in config/sitemap.yml. Here are the default weightings (or priorities) for each level included:

Level of description Default weight
Collection 0.9
Fonds 0.9
Subfonds 0.8
Series 0.7
Subseries 0.6
File 0.5
Item 0.4

If a user adds a custom level of description to the Level of description taxonomy (see: Terms), or if you wish to change the default priorities, you can edit the sitemap.yml file found in the config directory. see: config/sitemap.yml for more information.

Important

There is currently no way to add custom weights for other entities in AtoM such as authority records, archival institutions, functions, or static pages, etc.

The default weighting for new archival description levels of description added, without a custom entry into the config/sitemap.yml file is 0.9.

By default, authority records receive a weight of 0.5 and static pages a weight of 1.0.

When the command is run, at least 2 files are generated - by default they are added to the root AtoM directory (though a specific location can be specified using the task’s options - see below). A sitemap.xml file acts as a pointer file when multiple sitemaps are produced (e.g. if there are more than 50,000 nodes, the task will automatically break this up into 2 or more XML files, as per Google’s recommendations). If only 1 sitemap file is produced, this pointer will still be generated, but will not be needed and can be discarded if desired. The other file (or files) is the actual sitemap for your AtoM instance - by default it is compressed using Gzip, although again there is also an option to disable this if desired.

Using the sitemap generation command-line task:

Example use:

php symfony tools:sitemap
An image of the help page for the sitemap CLI tool

By typing php symfony help tools:sitemap into the command-line, you can see the options available on the export:bulk command, as pictured above.

The --application, --env, and connection options should not be used - AtoM requires the uses of the pre-set defaults for symfony to be able to execute the task.

the --output-directory (or -O for short) option is used to specify a specific location for the sitemap XML files on output - by default, they are added to AtoM’s root directory.

The --base-url option can be used to specify a base URL for the AtoM instance, used in the sitmap XML files generated. Note that AtoM will use the value entered in the Admin > Settings > Site information page for the Base URL by default, so if you’ve added the correct value there, you shouldn’t need this option. See: Site information for more on Base URLs.

The --indent is a boolean value - by default, the XML generated will be indented and formatted to assist human readability (e.g. --indent=1). However, if desired, linebreaks and indentation can be removed, but adding --indent=0 to the command

Also by default, the XML sitemap generated will be compressed using Gzip - however, if desired, you can prevent the compression by using the --no-compress option.

If an older sitemap already exists in the target directory when the task is run, AtoM will ask you to confirm if you want the older versions to be overwritten or not. If you don’t want this interruption (e.g. if you are using this task as part of an automated deployment, etc), you can skip the confirmation step with --no-confirmation, or -B for short.

Finally, if you would like the sitemap(s) to be submitted to Bing and Google after generation, you can add the --ping option to the command.

Back to top

Common AtoM database queries

Occasionally manually modifying the AtoM database is required, such as when data gets corrupted from timeouts or other bugs. Here we will include a few useful queries based on common actions users wish to perform on their databases, which are not accommodated from the user interface. For all of these, you will need to execute them from inside MySQL, using the username and password you created during installation.

Assuming your username and pass are both set to “root”, here is an example of what you would type into the command-line:

$ mysql -u root -p root

Once you’ve accessed the database, you can run SQL queries to manually modify the AtoM database.

Important

We strongly recommend that you back-up all of your data prior to manipulating the database! If possible, you should test the outcome on a cloned development instance of AtoM, rather than performing these actions on a production site without testing them in advance.

Update all draft archival descriptions to published

Use this command to publish all draft descriptions in AtoM:

UPDATE status SET status_id=160 WHERE type_id=158 AND object_id <> 1;

Update all draft archival descriptions from a particular repository to published

First, retrieve the id of the repository from the slug. In this example, the repository is at http://myatomsite.com/atom/index.php/my-test-repo

SELECT object_id FROM slug WHERE slug='my-test-repo';

Assuming in this example the id returned is 123, you would then execute the following query to perform the publication status updates:

UPDATE status
  SET status_id=160
  WHERE type_id=158 AND status_id=159
  AND object_id IN (
    SELECT id FROM information_object
    WHERE repository_id=123
  );

Don’t forget to rebuild the search index!

php symfony search:populate

Truncate slugs to maximum character length

This command will truncate all slugs to a specified maximum character length. In the example below, the character length is 245.

UPDATE slug SET slug = LEFT(slug, 245) WHERE LENGTH(slug) > 245;

Delete slugs from AtoM

In some cases, you may wish to replace the existing slugs in AtoM - particularly if they have been randomly generated because the user-supplied data from which the slug is normally derived (e.g. the “Title” field for an archival description) was not entered when the record was created. For more information on how slugs are generated by AtoM, see above, Notes on slugs in AtoM. If you have since supplied the relevant information (e.g. added a title to your archival description), you may want to generate a new slug for it that is more meaningful.

In such a case, you will need to delete the slug in AtoM’s database first - after which you can run the command-line task to generate slugs for those without them (see above, Generate slugs). AtoM slugs are conveniently stored in a table named “slug” - if you know the slug you’d like to delete, you can use the following command to delete it from AtoM’s database (replacing your-slug-here with the slug you’d like to delete):

DELETE FROM slug WHERE slug='your-slug-here';

Important

Remember, you will run into problems if you don’t replace the slug! You can use the generate-slug task to do so; see Generate slugs, above. Remember as well: if you are trying to replace a randomnly generated slug, but you haven’t filled in the data field from which the slug is normally derived prior to deleting the old slug (see above for more on how slugs are generated in AtoM), you will end up with another randomly generated slug!

If you wanted to delete all slugs associated with descriptions (e.g. information objects) and terms, you could use the following example SQL query to delete them:

Important

Make sure you back up your data before proceeding! See: Backing up the database.

DELETE
FROM slug
WHERE (object_id IN
      (SELECT id
       FROM term)
    OR object_id IN
      (SELECT id
       FROM information_object))
AND object_id <> 1;

You can then use the generate-slugs task to generate new slugs:

php symfony propel:generate-slugs

See above for further documentation on this command-line tool.

If you wanted to delete all slugs currently stored in AtoM, you could do so with the following query:

DELETE FROM slug;

Warning

This is an extreme action, and it will delete ALL slugs, including custom slugs for your static pages - and may break your application. The generate-slugs task will not replace fixtures slugs - e.g. those that come installed with AtoM, such as for settings pages, browse pages, menus, etc - or any static pages! We strongly recommend backing up your database before attempting this - see above, Backing up the database - and we recommend using SQL queries to selectively delete slugs!

Back to the top
